We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.

9 INCH - SINGLE #2
	Pressure Plate Assembly Part #: FD320230  Type - Diaphragm  Plate Size - 9"  Levers - Diaphragm  Springs - Diaphragm  Stage -Single  Models: 1720, 1925

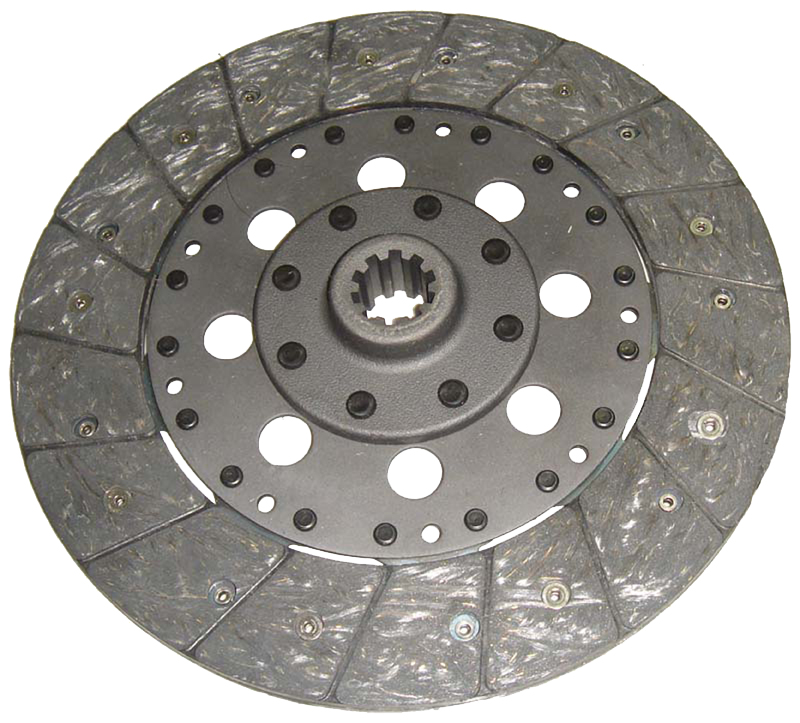

	Disc Part #: FD320530  Type - Rigid Woven  OD - 9"  Hub Size - 15/16"  Spline - 10  Models: 1925

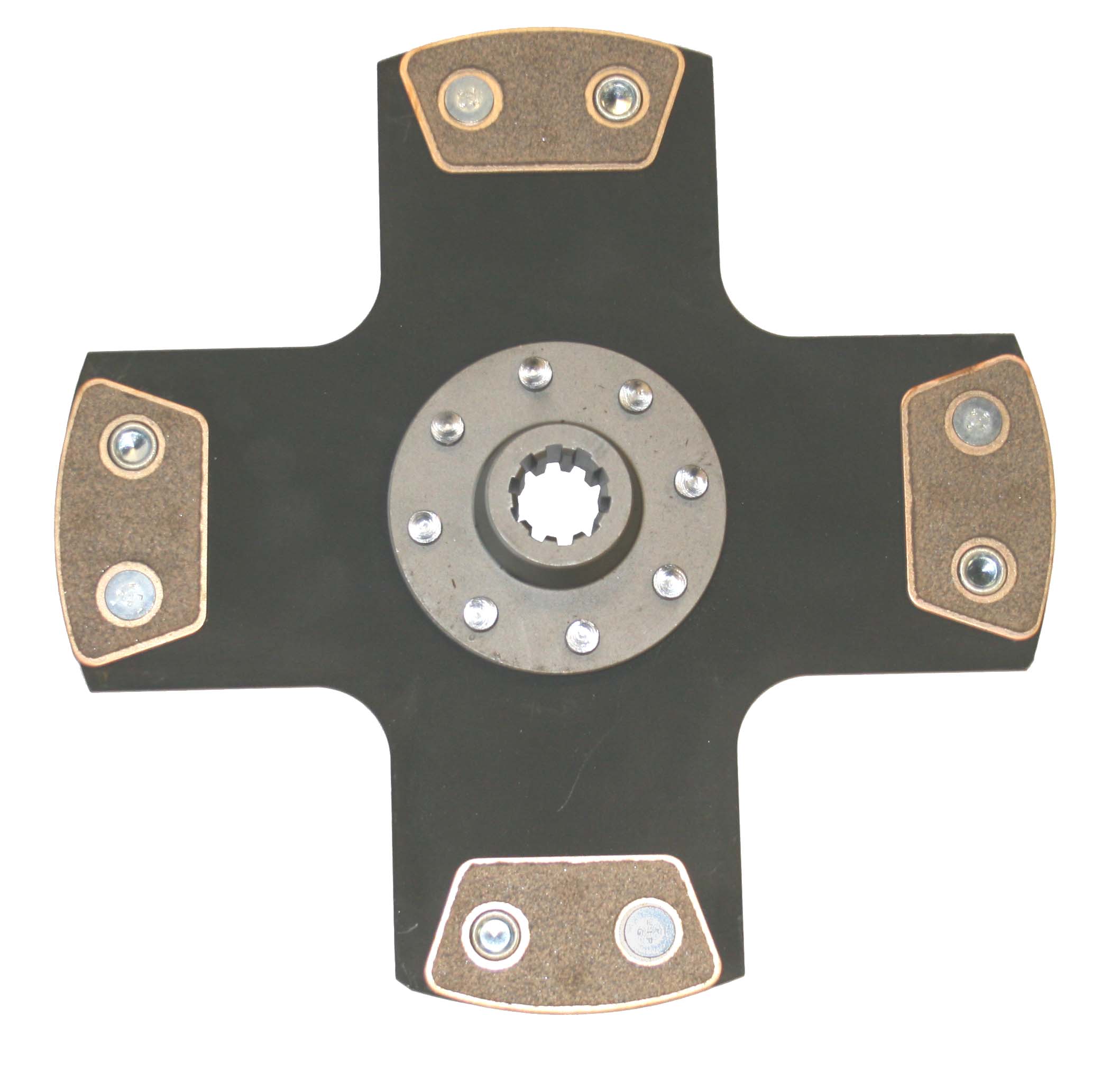

	Disc Part #: FD 320530 HD4  Type - Rigid Ceramic Button  OD - 9"  Hub - 10  Hub Size - 15/16"  Models: 1925

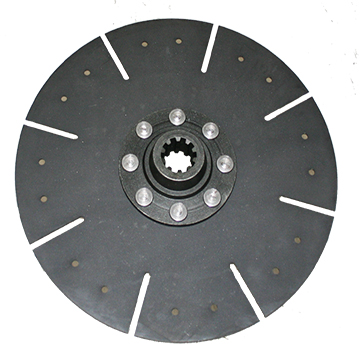

	Disc Part #: FD320530-UL  Type - Rigid Unlined  OD - 9"  Hub Size - 15/16"  Spline - 10  Models: 1925

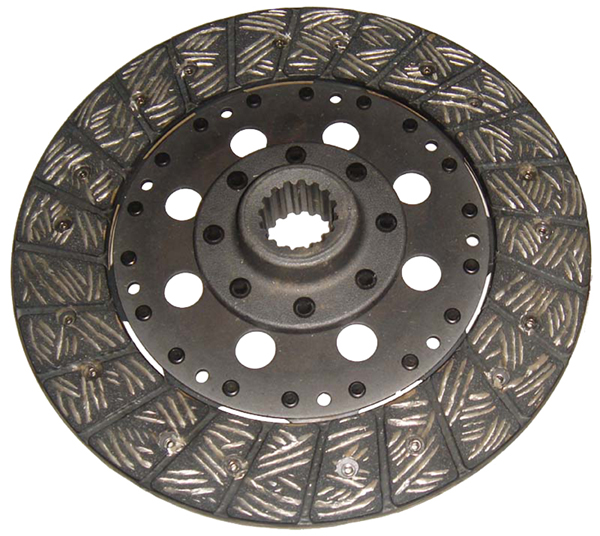

	Disc Part #: FD400373  Type - Rigid Woven  OD - 9"  Hub Size - 1-3/16"  Spline - 16  Models: 1720
	Release Bearing Part #: N018 Reference #: 832103 Reference #: TK45-4B  ID - 1.771"  OD - 2.900"  Thickness - 0.700"  Models: 1720, 1910, 1925
	Pilot Bearing Part #: 6001-2RS  ID - 0.475"  OD - 1.102"  Thickness - 0.313  Models: 1720, 1910, 1925
	Alignment Tool Part #: AG 01  Large Spline - 1 3/8" - 19T  Small Spline - 15/16" - 10T  Pilot Diameter - 0.468  Models: 1000, 1310, 1320, 1500, 1510, 1520, 1530, 1600, 1620, 1630, 1700, 1710, 1715, 1725, 1900, 1925
