Ford

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


12-1/4 DUAL STAGE 1
Pressure Plate Assembly
Part #: F5189875
Reference #: 231 0088 10
 Type - Lever
 Plate Size - 12-1/4"
 Levers - 6
 Springs - Belleville
 Hub/Spline - 1-3/4" x 16
 Flywheel Step - .018
 Stage -Dual
 Includes 6 Pad Engine Disc


Part #: F9966577

 ONE (1) PTO LEVER (SHORT)


Part #: F9966577 KIT
Reference #: 18900

 ONE (1) PTO LEVER W/HARDWARE (SHORT)


Part #: F9968855

 ONE (1) MAIN DRIVE LEVER (LONG)


Part #: F9968855 KIT
Reference #: 16400

 ONE (1) MAIN DRIVE LEVER W/ HARDWARE

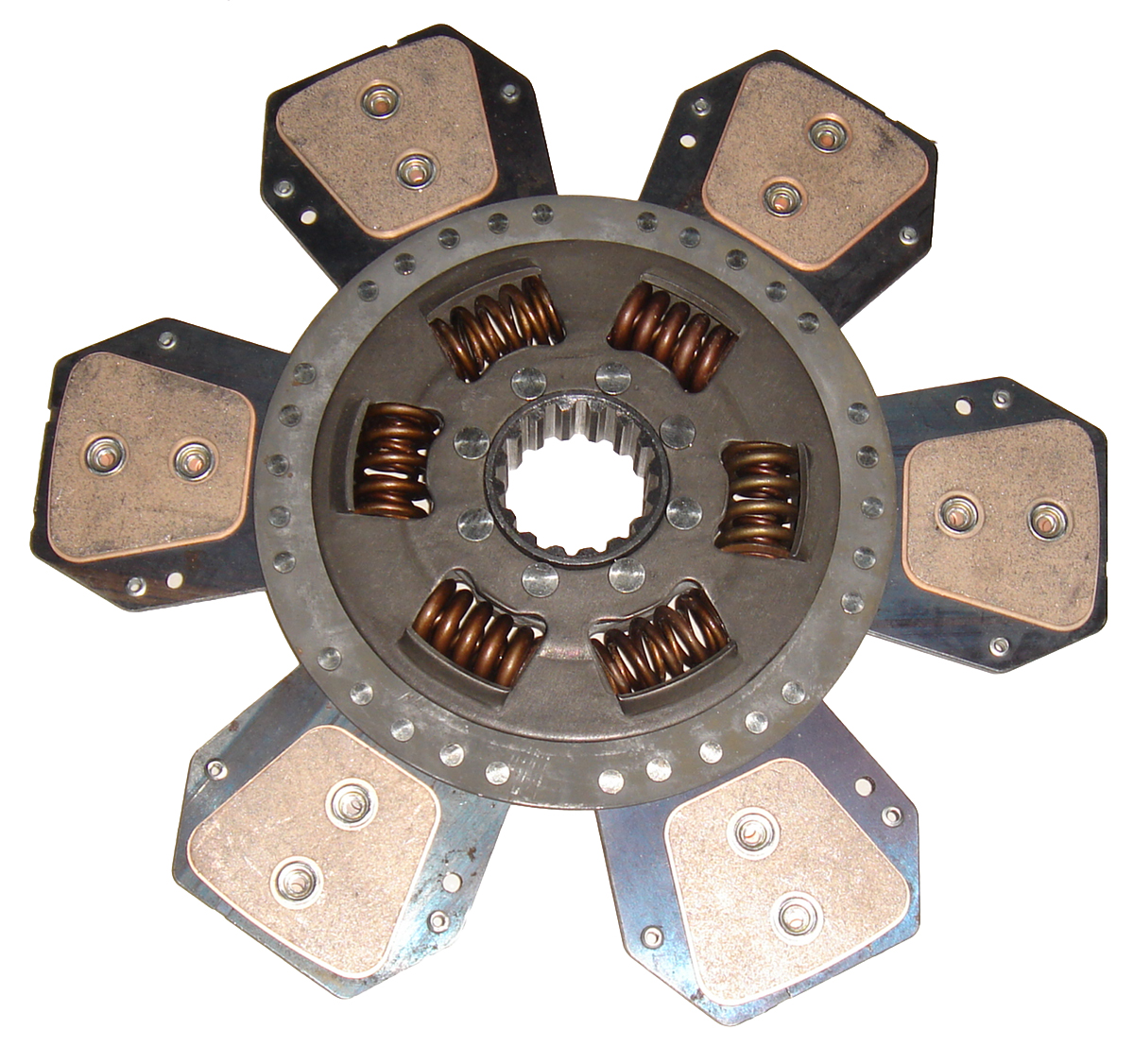

Disc
Part #: F5189823
 Type - Spring Ceramic
 OD - 12-1/4"
 Hub Size - 1-3/4"
 Spline - 16
 Transmission Ceramic Button Disc Captive

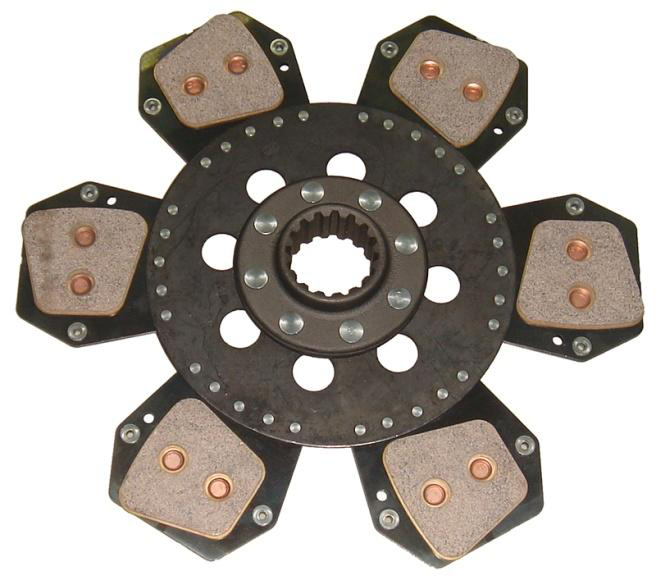

Disc
Part #: D2093915
 Type - Rigid Ceramic Button
 OD - 12-1/4"
 Hub Size - 1-3/4"
 Spline - 16

Disc
Part #: D2093915-UL
 Type - Rigid Unlined Button
 OD - 12-1/4"
 Hub Size - 1-3/4"
 Spline - 16

Release Bearing
Part #: 500 0459 00
8301080
87345759
87541562
 ID - 1.968"
 OD - 3.550"
 Thickness - 0.845"

 RELEASE BEARING W/COLLAR
 Luk Style

 Models: 3010S, 4010S, 4030, 4230, 4330V, 4430, 5010S, 5530, 6530, 7530
