Ford
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
9 INCH - SINGLE STAGE #1 | |||||
---|---|---|---|---|---|

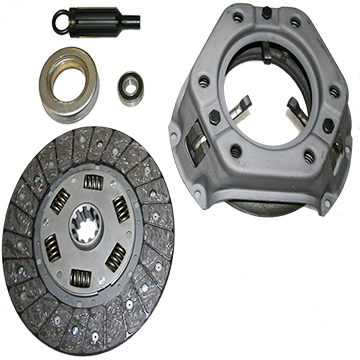

Clutch Kit Part #: F8N63SK  Includes: 6203-2RS, AT 5325, F8N63S, FNA50A, N1087 | |||||

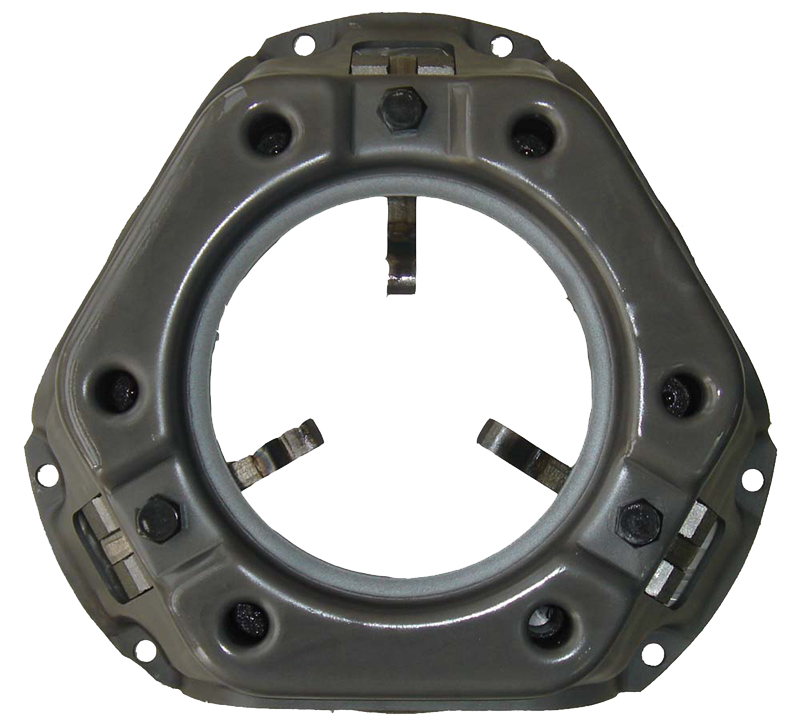

Pressure Plate Assembly Part #: F8N63S Reference #: CA5102  Type - Lever  Plate Size - 9"  Levers - 3  Springs - 6  Flywheel Step - Flat  Stage -Single  Levers w/o Weights  Models: 2N, 8N, 9N, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131 | |||||
Disc Part #: FNA50A Reference #: 280604  Type - Spring Woven  OD - 9"  Hub Size - 1-3/8"  Spline - 10T  Models: Golden Jubilee, N Series, NAA, NAB, Super Dexta, 2N, 8N, 9N, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||
Disc Part #: FNA50A-SP Reference #: 280604-SP  Type - Spring Woven  OD - 9"  Hub Size - 1-3/8"  Spline - 10  Fits the same models as FNA50A. | |||||
Disc Part #: FNA50A-R Reference #: 280604-R  Type - Rigid Woven  OD - 9"  Hub Size - 1-3/8"  Spline - 10  Fits the same models as FNA50A. | |||||

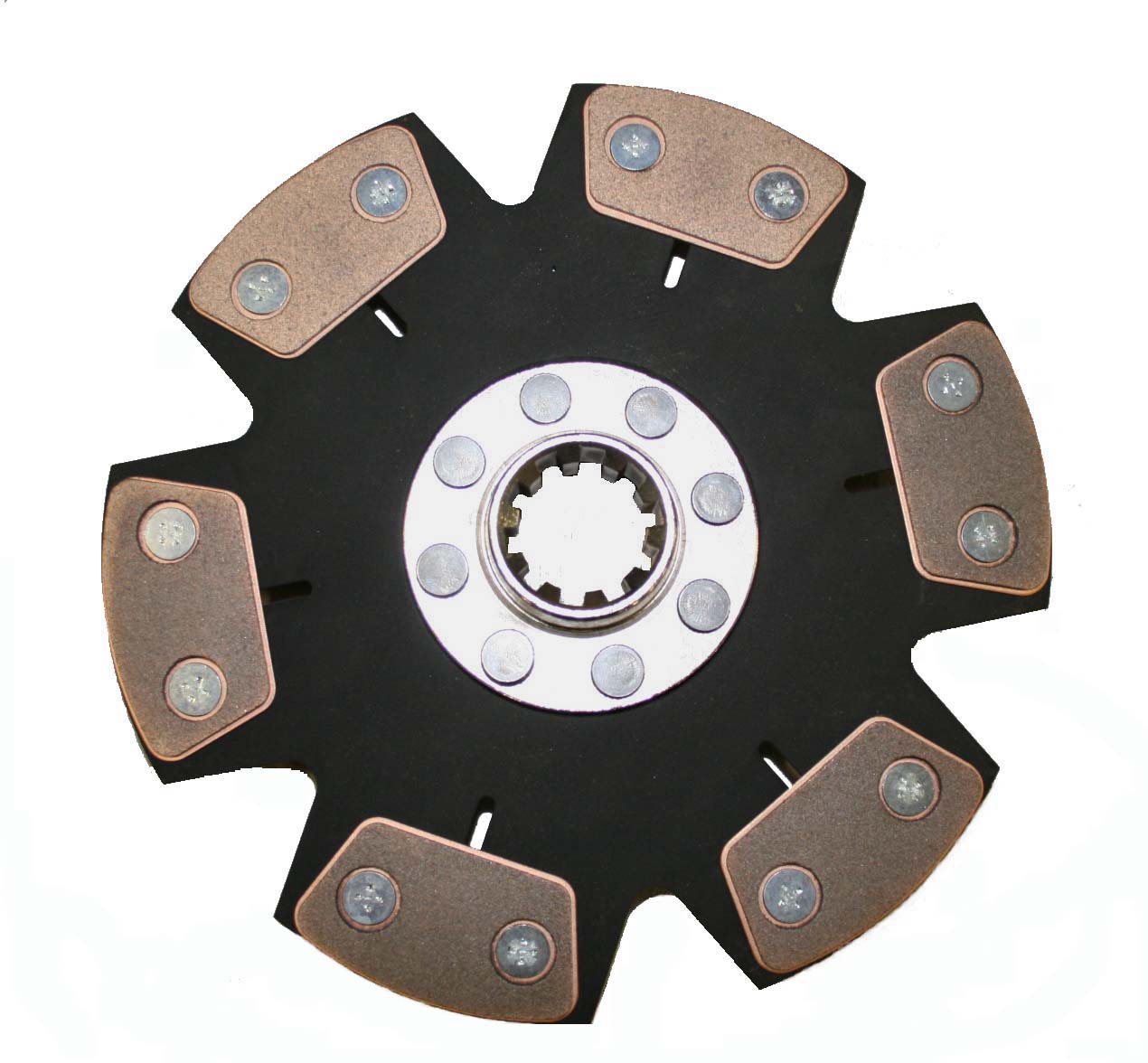

Disc Part #: FNA50A HD6 Reference #: 280604-CB  Type - Rigid Ceramic Button  OD - 9"  Hub Size - 1-3/8"  Spline - 10  Models: Golden Jubilee, N Series, NAA, NAB, Super Dexta, 2N, 8N, 9N, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||
Release Bearing Part #: N1087 Reference #: 2065 Reference #: 832065 Reference #: A2256-1  ID - 2.062"  OD - 3.500"  Thickness - .750"  Greasable  Models: Golden Jubilee, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410 | |||||
Pilot Bearing Part #: 6203-2RS  ID - .6693"  OD - 1.5748"  Thickness - 1.5748"  Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | |||||
Alignment Tool Part #: AT 5325  Large Spline - 1-3/8 x 10  Small Spline - N/A  Pilot Diameter - .670  ALIGNMENT TOOL  Models: Golden Jubilee, N Series, NAA, NAB, Super Dexta, 2N, 8N, 9N, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 |
