Ford
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
| 11 INCH - SINGLE STAGE 1 | |||||
|---|---|---|---|---|---|
 |
Clutch Kit Part #: FC563ZN-10 KIT Includes: 6203-2RS, AG 03, FC563Z, FE351AA, N1087 | ||||
 |
Clutch Kit Part #: FD063AN KIT Includes: 6203-2RS, AG 03, FD063A, FE351AA, N1087 | ||||
 |

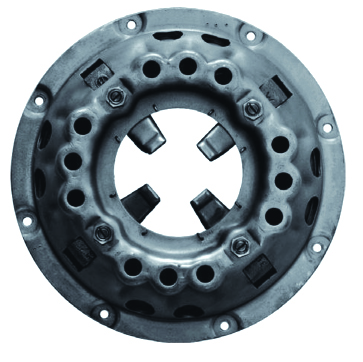

Pressure Plate Assembly Part #: FC563Z Reference #: C5NN7563V Type - Lever Plate Size - 11" Levers - 4 Springs - 12 Flywheel Step - Flat Stage -Single 1965 - September 1969 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Pressure Plate Assembly Part #: FD063A Type - Lever Plate Size - 11" Levers - 3 Springs - 6 Flywheel Step - Flat Stage -Single October 1969 & Above Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4410, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |

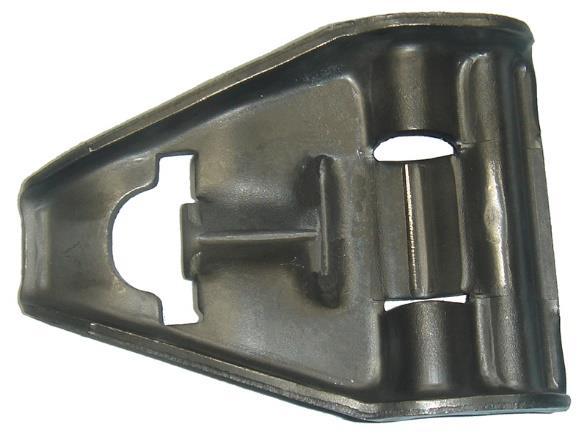

Part #: PT27832 LEVER FOR PPA FD063A | ||||
 |
Disc Part #: FC750V Reference #: 281150 Type - Spring Woven OD - 11" Hub Size - 1" Spline - 15 1965 - September 1969 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FC750V-UL Type - Spring Unlined OD - 11" Hub Size - 1" Spline - 15 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FC750V-R Reference #: 281150-R Type - Rigid Woven OD - 11" Hub Size - 1" Spline - 15 1965 - September 1969 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FE350AA/345 Type - Spring Woven OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FE350AA-UL Type - Spring Unlined OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FE351AA Reference #: CD-2788 Type - Rigid Woven OD - 11" Hub Size - 1" Spline - 10 October 1969 & Above Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FE351AA-UL Type - Rigid Unlined OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FC750AD HD-4 Reference #: CD-2788-CB Type - Rigid Ceramic Button OD - 11" Hub Size - 1" Spline - 10 October 1969 & Above Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FC750AD HD-6 Type - Rigid Ceramic Button OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
|
Disc Part #: FC750AD-HD-4-UL Type - Rigid Unlined Disc OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |

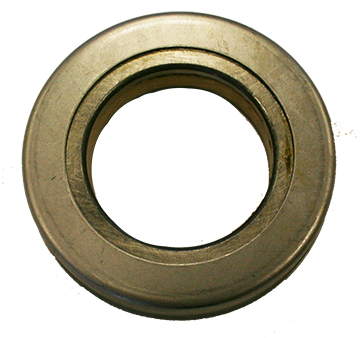

Release Bearing Part #: N1087 Reference #: 2065 Reference #: 832065 Reference #: A2256-1 ID - 2.062" OD - 3.500" Thickness - .750" Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410 | ||||
 |
Release Bearing Part #: N1174 Reference #: 2505-T Reference #: 832505 Reference #: A2287-31 ID - 2.500" OD - 4.154" Thickness - .865" Models: Golden Jubilee, Major, Super Dexta, Super Major, TW15, TW20, TW25, TW30, TW35, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Pilot Bearing Part #: 6203-2RS ID - .6693" OD - 1.5748" Thickness - 1.5748" Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Alignment Tool Part #: AG 03 Large Spline - 1 7/8" - 29T Small Spline - 1" - 10T Pilot Diameter - 0.670 Models: 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 530A, 531, 532, 535, 540, 545, 550, 555, 655, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 |
||||
