Ford
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
10 INCH - SINGLE STAGE | |||||
---|---|---|---|---|---|

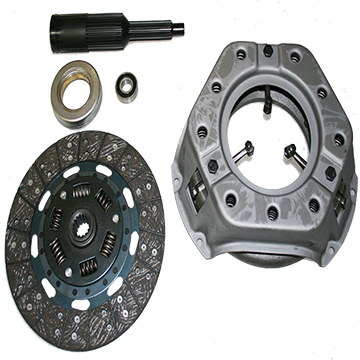

Clutch Kit Part #: FND63AKN KIT Reference #: NDA7563AK  Includes: 6203-2RS, AG 15, FND50B, FND63A, N1087 | |||||
Pressure Plate Assembly Part #: FND63A  Type - Lever  Plate Size - 10"  Levers - 3  Springs - 9  Flywheel Step - Flat  Stage -Single  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||

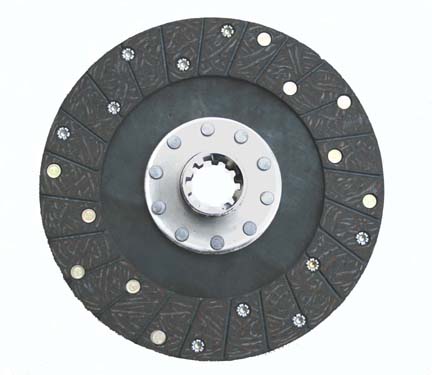

Disc Part #: FNB51B Reference #: 280870  Type - Spring Woven  OD - 10"  Hub Size - 1-3/8"  Spline - 10T  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||
Disc Part #: FND52B  Type - Rigid Woven  OD - 10"  Hub Size - 1-3/8"  Spline - 10  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||

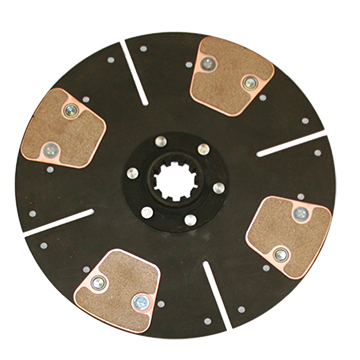

Disc Part #: R65439 HD4  Type - Rigid Ceramic Button  OD - 10"  Hub Size - 1-3/8"  Spline - 10  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||

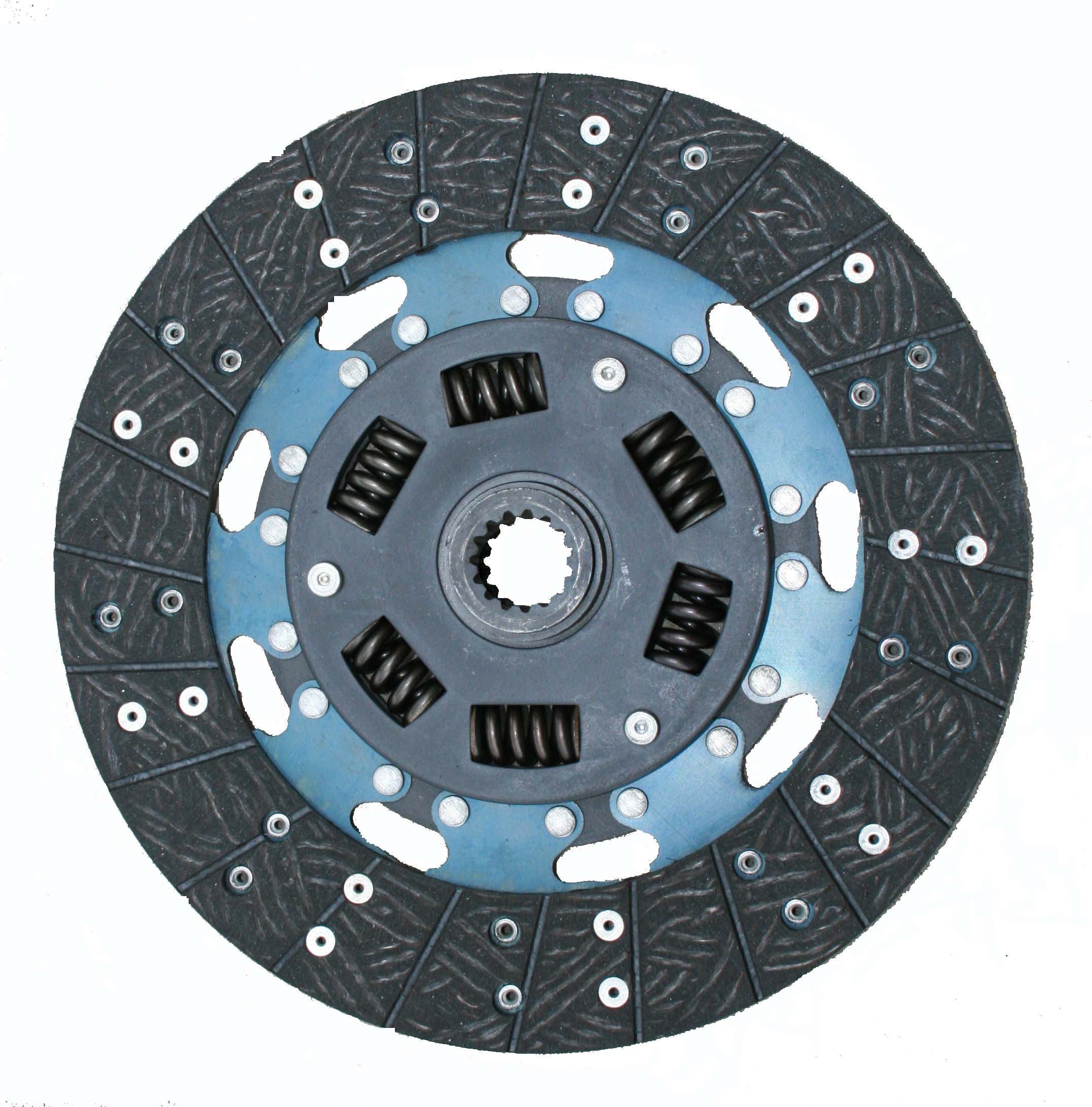

Disc Part #: FND50B Reference #: NDA7550B  Type - Spring Woven  OD - 10"  Hub Size - 1"  Spline - 15  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||

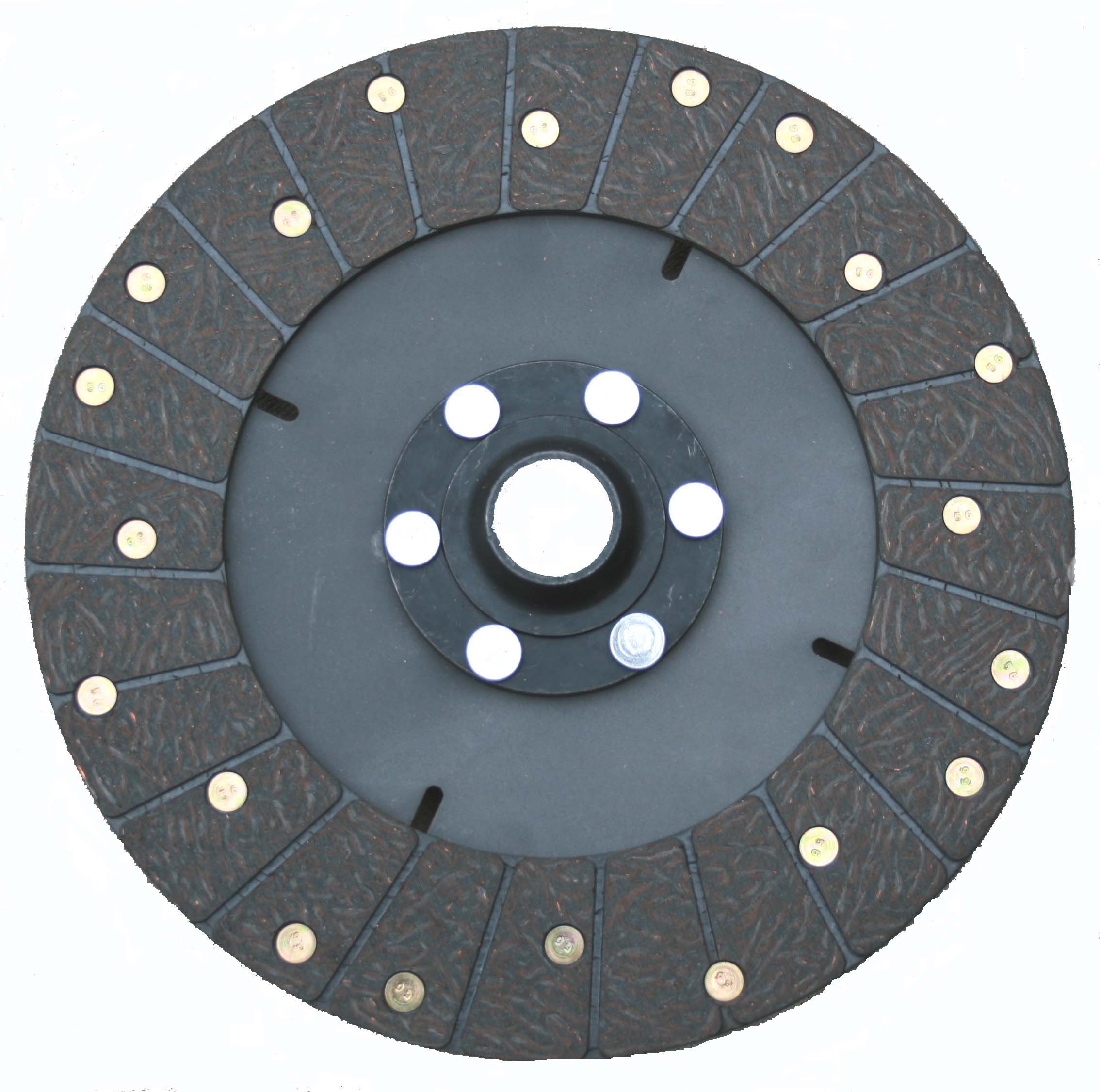

Disc Part #: FND50B-R Reference #: FNDA7550B-R  Type - Rigid Woven  OD - 10"  Hub Size - 1"  Spline - 15  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||
Disc Part #: FND50B HD4 Reference #: FND50B-CB-R  Type - Rigid Ceramic Button  OD - 10"  Hub Size - 1"  Spline - 15  Models: 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 | |||||
Release Bearing Part #: N1087 Reference #: 2065 Reference #: 832065 Reference #: A2256-1  ID - 2.062"  OD - 3.500"  Thickness - .750"  Greasable  Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410 | |||||
Pilot Bearing Part #: 6203-2RS  ID - .6693"  OD - 1.5748"  Thickness - 1.5748"  Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | |||||
Alignment Tool Part #: AG 15  Large Spline - 1 7/8" - 29T  Small Spline - 1" - 15T  Pilot Diameter - 0.670  Models: Golden Jubilee, Super Dexta, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3550, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500 | |||||
Alignment Tool Part #: AG 19  Small Spline - 1 3/4" - 10T  Models: Golden Jubilee, N Series, NAA, NAB, Super Dexta, 2N, 8N, 9N, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 4000 |
