Ford
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
| 11 INCH DUAL STAGE 1 | |||||
|---|---|---|---|---|---|
 |

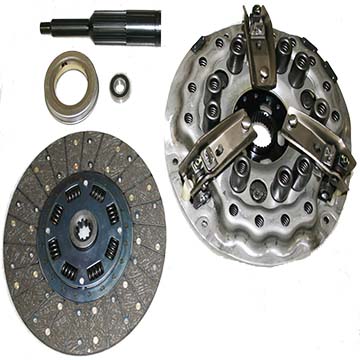

Clutch Kit Part #: FD802AAN KIT Reference #: 12126075 Includes: 6203-2RS, AG 03, FD802AA, FE350AA/360, N1174 | ||||
 |

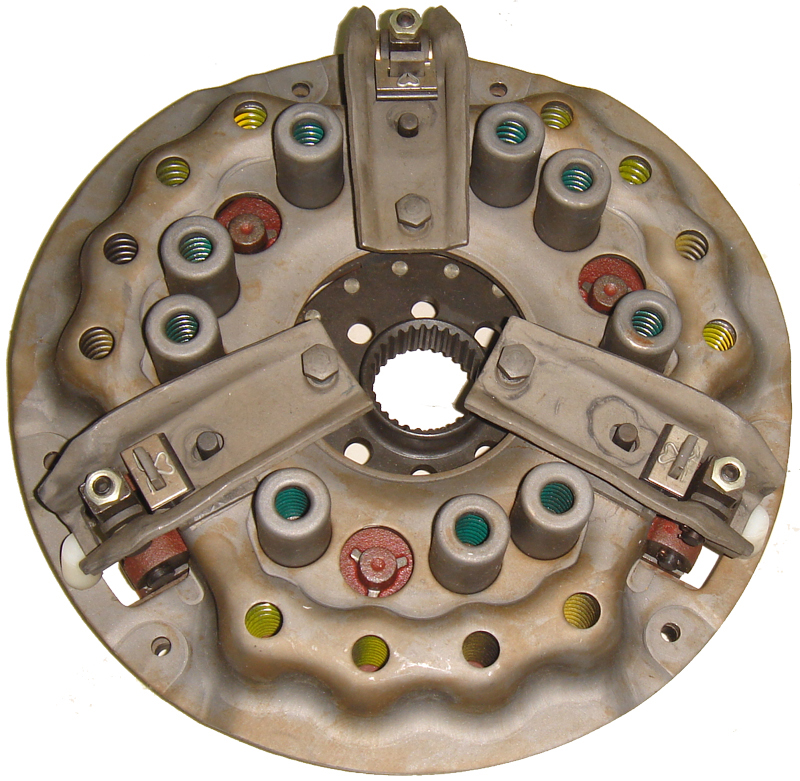

Pressure Plate Assembly Part #: FD802AA Type - Lever Plate Size - 11" Levers - 3 Springs - 21 Hub/Spline - 1-7/8" x 29 Flywheel Step - 1.750" Stage -Dual Includes Woven PTO Disc Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 3000, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 4000, 4100, 4110, 4400, 4600 | ||||
 |
Pressure Plate Assembly Part #: FD802AA-A Type - Lever Plate Size - 11" Levers - 3 Springs - 24 Hub/Spline - 1-7/8" x 29 Flywheel Step - 1.750" Stage -Dual Includes Woven PTO Disc Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 3000, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 4000, 4100, 4110, 4400, 4600 | ||||
 |
Part #: FD802AA KIT LEVER KIT FOR PPA #FD802AA | ||||
 |
Disc Part #: FC750V Reference #: 281150 Type - Spring Woven OD - 11" Hub Size - 1" Spline - 15 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FC750V-UL Type - Spring Unlined OD - 11" Hub Size - 1" Spline - 15 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FC750V-R Reference #: 281150-R Type - Rigid Woven OD - 11" Hub Size - 1" Spline - 15 1965 - September 1969 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FC750V HD4 Reference #: 281150 HD4 Type - Rigid Ceramic Button OD - 11" Hub Size - 1" Spline - 15 1965 - September 1969 Models: 2000, 2100, 2110, 2310, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3900, 4000, 4100, 4110, 4140, 4330, 4340, 4400, 4410 | ||||
 |
Disc Part #: FE350AA/345 Type - Spring Woven OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FE350AA-UL Type - Spring Unlined OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FE351AA Reference #: CD-2788 Type - Rigid Woven OD - 11" Hub Size - 1" Spline - 10 October 1969 & Above Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
|
Disc Part #: FC750AD HD-4 Reference #: CD-2788-CB Type - Rigid Ceramic Button OD - 11" Hub Size - 1" Spline - 10 October 1969 & Above Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FC750AD HD-6 Type - Rigid Ceramic Button OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FC750AD-HD-4-UL Type - Rigid Unlined Disc OD - 11" Hub Size - 1" Spline - 10 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 5000, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Disc Part #: FC541B Reference #: 322 0090 56 Reference #: C5NN77641B Reference #: E8NN7550LA Reference #: FC550A Type - Rigid Woven OD - 8-5/8" Hub Size - 1-7/8" Spline - 29 Models: 230A, 231, 233, 234, 333, 334, 335, 530A, 531, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 3000, 3100, 3120, 3190, 3300, 3310, 3330, 3400, 3500, 3600, 3610, 4000, 4100, 4110, 4400, 4600 | ||||
 |
Release Bearing Part #: N1174 Reference #: 2505-T Reference #: 832505 Reference #: A2287-31 ID - 2.500" OD - 4.154" Thickness - .865" Models: Golden Jubilee, Major, Super Dexta, Super Major, TW15, TW20, TW25, TW30, TW35, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Pilot Bearing Part #: 6203-2RS ID - .6693" OD - 1.5748" Thickness - 1.5748" Models: Golden Jubilee, Major, N Series, NAA, NAB, Super Dexta, Super Major, 2N, 8N, 9N, 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 515, 530A, 531, 532, 535, 540, 545, 550, 555, 600, 601, 611, 620, 621, 630, 631, 640, 641, 651, 655, 660, 661, 671, 681, 700, 701, 740, 741, 761, 771, 800, 801, 811, 820, 821, 840, 841, 851, 860, 861, 871, 900, 901, 941, 950, 951, 960, 961, 971, 981, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2030, 2031, 2100, 2110, 2111, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 | ||||
 |
Alignment Tool Part #: AG 03 Large Spline - 1 7/8" - 29T Small Spline - 1" - 10T Pilot Diameter - 0.670 Models: 230A, 231, 233, 234, 250C, 260C, 333, 334, 335, 340, 345, 420, 445, 530A, 531, 532, 535, 540, 545, 550, 555, 655, 2000, 2100, 2110, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340 |
||||
