KUBOTA

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


9 INCH DUAL STAGE 2

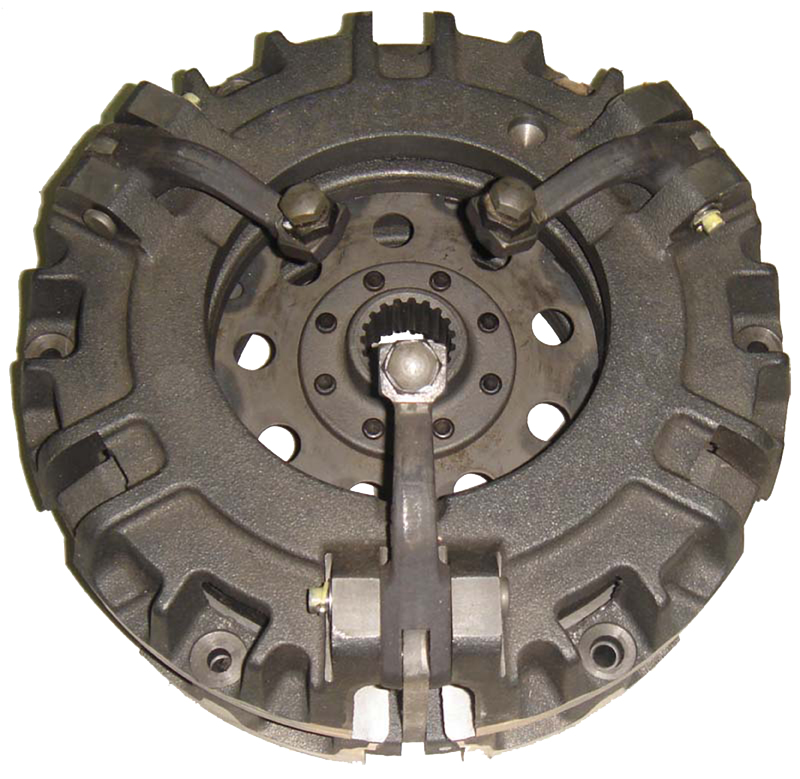

Pressure Plate Assembly
Part #: K35350
 Type - Lever
 Plate Size - 9"
 Levers - 3
 Springs - Belleville
 Hub/Spline - 1-3/8" x 19
 Flywheel Step - .028
 Stage -Dual
 Includes Woven PTO Disc

 Models: L305, L345
Disc
Part #: FD320051
Reference #: R13090
 Type - Rigid Woven
 OD - 9"
 Hub - 15/16"
 Spline - 13

 Models: L305, L345, L2850, L2950, L3250, L3450, L3650
Disc
Part #: FD320051 HD6
 Type - Rigid Ceramic Button
 OD - 9"
 Hub - 15/16"
 Spline - 13

 Models: L305, L345, L2850, L2950, L3250, L3450, L3650

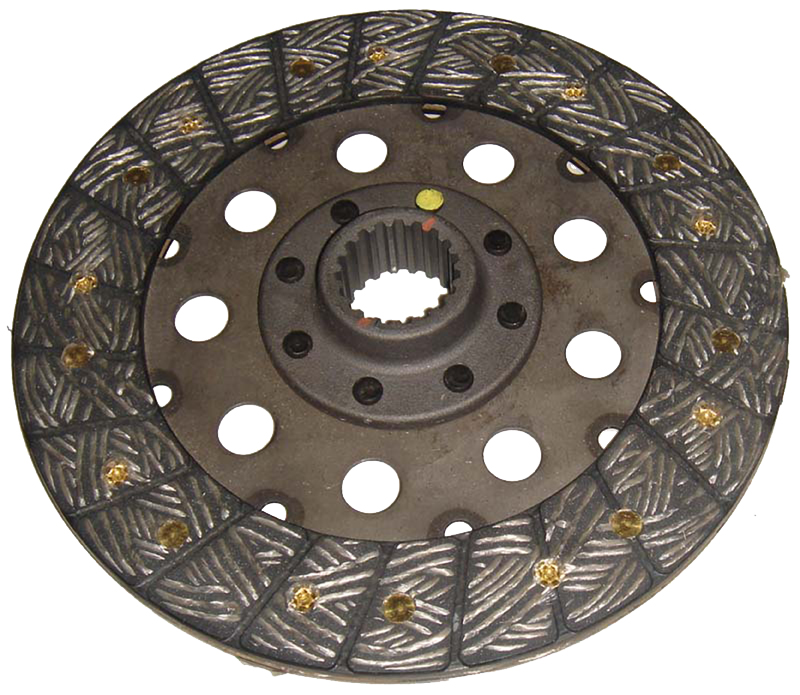

Disc
Part #: FD320061
 Type - Rigid Woven
 OD - 9"
 Hub Size - 1-3/8"
 Spline - 19

 Models: L305, L345
Disc
Part #: FD320061 HD4
 Type - Rigid Ceramic Button
 OD - 9"
 Hub Size - 1-3/8"
 Spline - 19

 Models: L305, L345

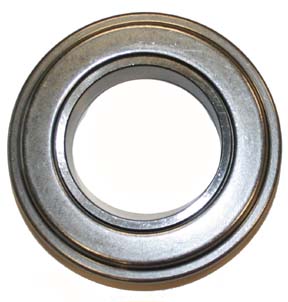

Release Bearing
Part #: N052

 Models: L305, L345, M6950, M6970, M7580, M7950, M7970, M8540, M8580, M8950, M8970, M9540
Pilot Bearing
Part #: 6002-2RS
15005
836002
 ID - 0.590"
 OD - 1.250"
 Thickness - 0.350"

 Models: L30, L35, L39, L45, L48, L175, L185, L200, L225, L235, L245, L260, L275, L285, L295, L305, L345, L355, L1500, L1501, L2050, L2201, L2250, L2255, L2350, L2500, L2550, L2600F, L2650, L2800, L2850, L2900, L2950, L3000, L3010, L3130, L3240, L3250, L3300, L3350, L3400, L3410, L3430, L3450, L3540, L3560, L3600, L3650, L3710, L3830, L3940, L4150, L4150 DTN, L4200, L4202, L4240, L4300, L4310, L4350, L4400, L4600, L4610, L4630, L4701, L4740, L5030, L5040, L5240, L5740, MX4700, MX4800, MX5000, MX5100, MX5200
