KUBOTA
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
13 INCH SINGLE STAGE | |||||
---|---|---|---|---|---|
![]() |

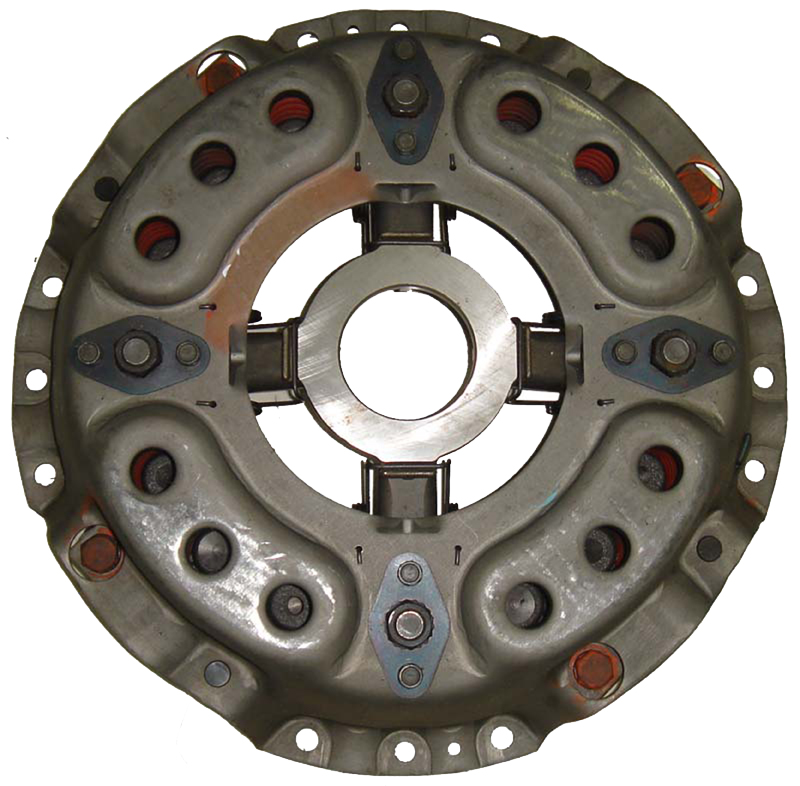

Pressure Plate Assembly Part #: K36530 Reference #: 3F740-25110 Reference #: E5230210-34100 Reference #: K36530-25112  Type - Lever  Plate Size - 13"  Levers - 4  Springs - 12  Stage -Single  Includes Bearing Release Plate  Models: M6950, M6970, M7580, M7950, M7970, M8540, M8580, M8950, M8970, M9540 | ||||
![]() |
Part #: K36530 KIT  Lever Kit For K36530  Includes Bearing Seat, Levers & Springs | ||||
![]() |

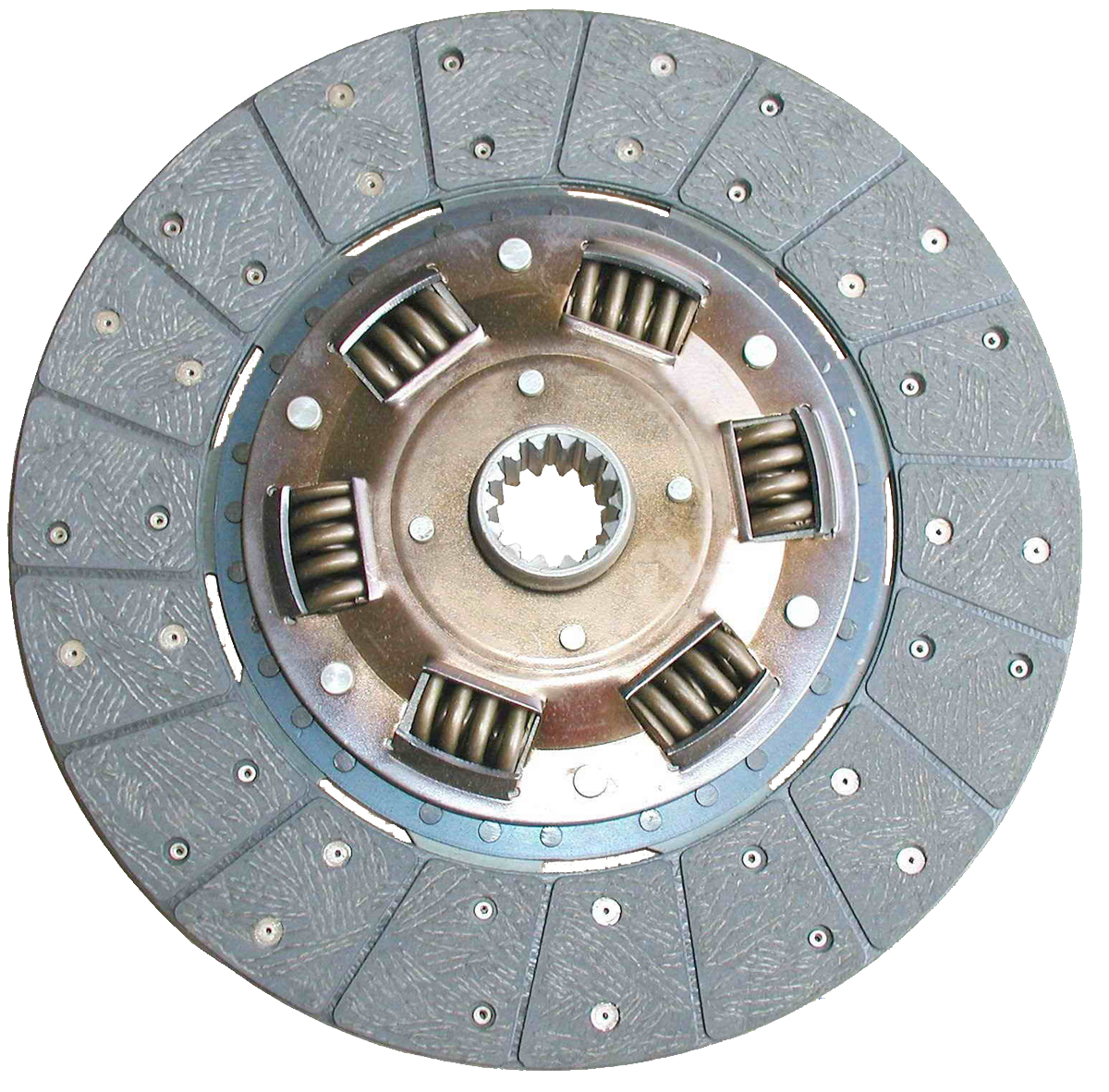

Disc Part #: K36430  Type - Spring Woven  OD - 13"  Hub Size - 1-9/16"  Spline - 14  Models: M6950, M6970, M7580, M7950, M7970, M8580, M8950, M8970 | ||||
![]() |

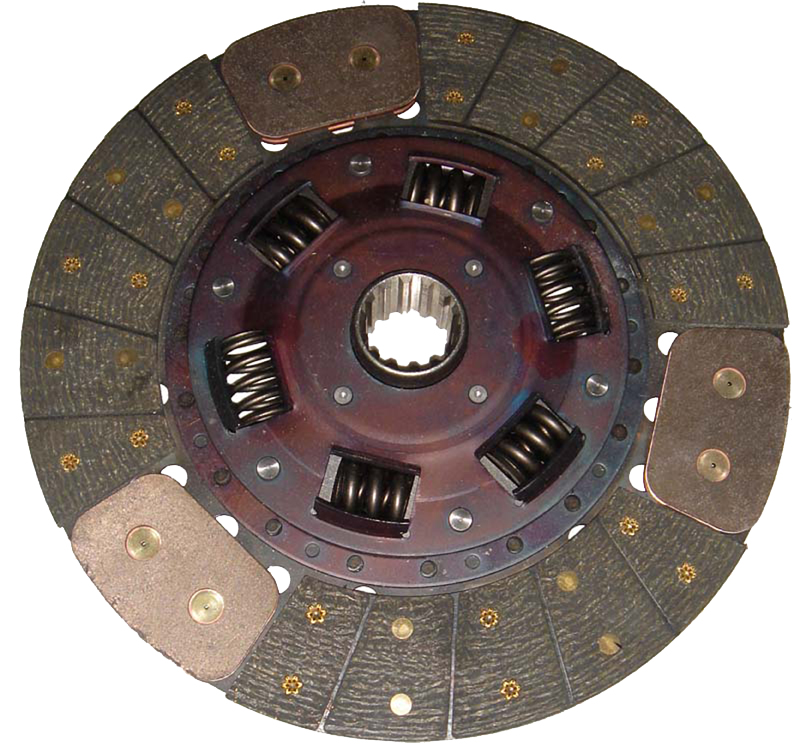

Disc Part #: K36430W3  Type - Spring Woven/Ceramic Button  OD - 13"  Hub Size - 1-9/16"  Spline - 14  Models: M6950, M6970, M7580, M7950, M7970, M8580, M8950, M8970 | ||||
![]() |

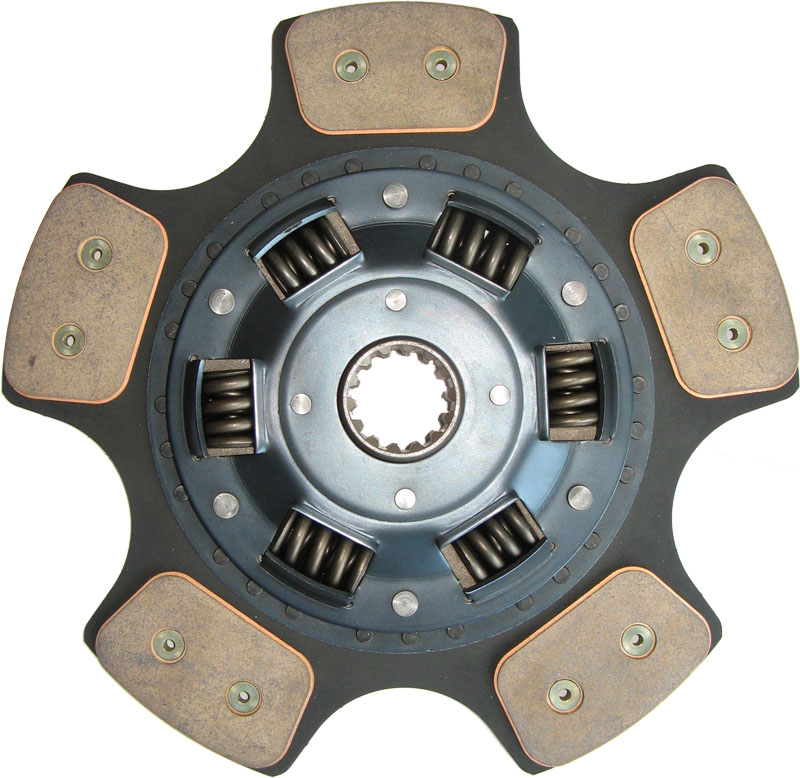

Disc Part #: K36430 HD5 Reference #: 3C08125132  Type - Spring Ceramic Button  OD - 13"  Hub Size - 1-9/16"  Spline - 14  Models: M6950, M6970, M7580, M7950, M7970, M8580, M8950, M8970 | ||||
![]() |
Pilot Bearing Part #: 835213  ID - 2.062"  OD - 3.631"  Thickness - 1.017"  Models: L305, L345, M6950, M6970, M7580, M7950, M7970, M8540, M8580, M8950, M8970, M9540 | ||||
![]() |
Pilot Bearing Part #: 6007-2RS  ID - 1.371"  OD - 2.441"  Thickness - .550"  Models: M4700, M4800, M4900, M5400, M5640, M5700, M6040, M6800, M6950, M6970, M7040, M7580, M7950, M7970, M8200, M8540, M8580, M8950, M8970, M9000, M9540, M9580 |
