KUBOTA

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


9 INCH DUAL STAGE

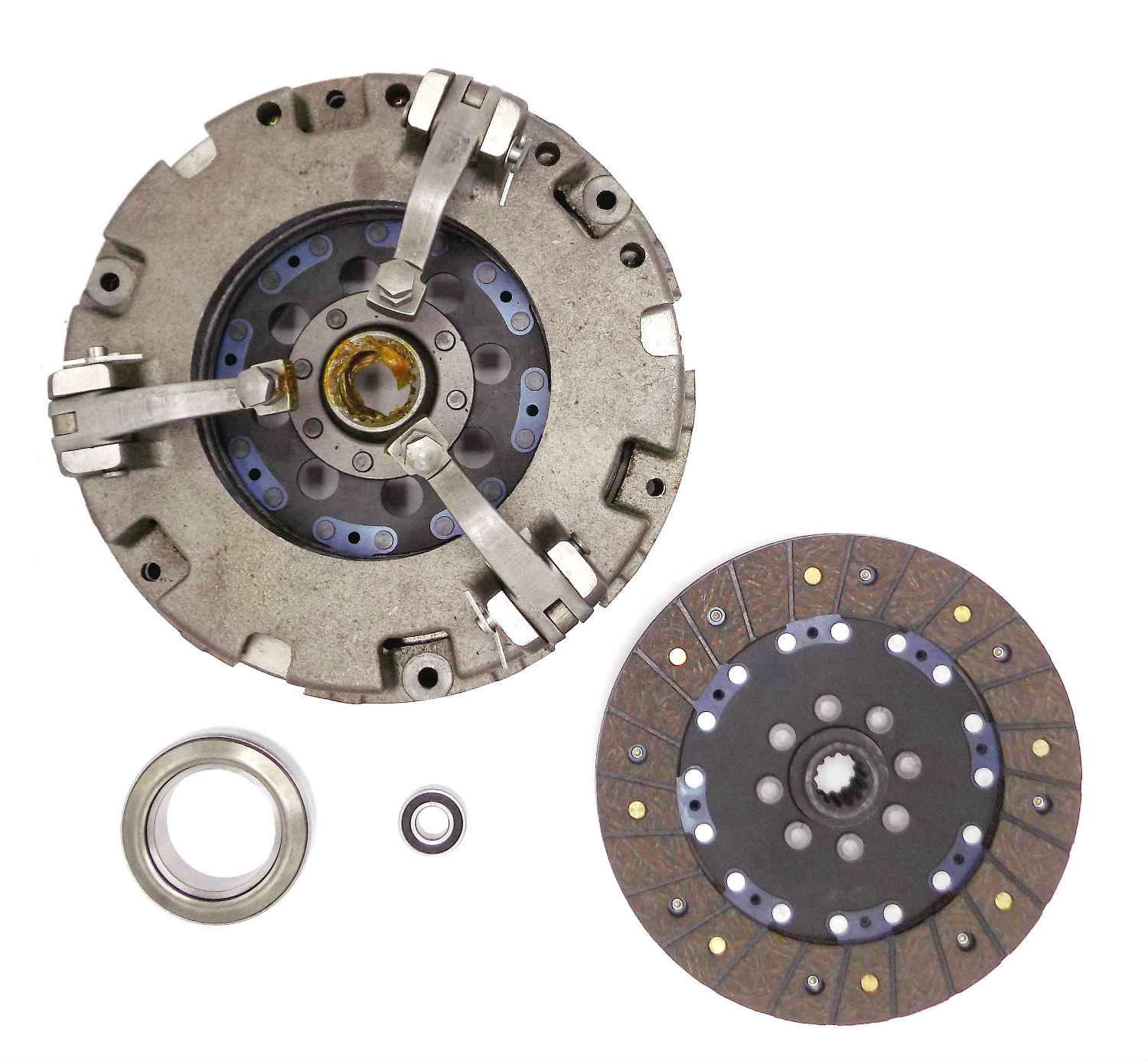

Clutch Kit
Part #: K35080N KIT
 Includes: 6002-2RS, FD320051, K35080, RCT55B

Pressure Plate Assembly
Part #: K35080
Reference #: FD320980
Reference #: K35080
Reference #: K35080-14290
 Type - Lever
 Plate Size - 9"
 Levers - 3
 Springs - 2 Belleville
 Hub/Spline - 1-3/8" x 19
 Flywheel Step - .079"
 Stage -Dual

 Models: L2800, L2850, L2950, L3250, L3400, L3450, L3650, L4400
Disc
Part #: FD320260
Reference #: K36260-14450
Reference #: TD060-20500
 Type - Rigid Woven
 OD - 8-1/2"
 Hub Size - 1-3/8"
 Spline - 19

 Models: L2800, L2850, L2950, L3250, L3400, L3450, L3650, L4400

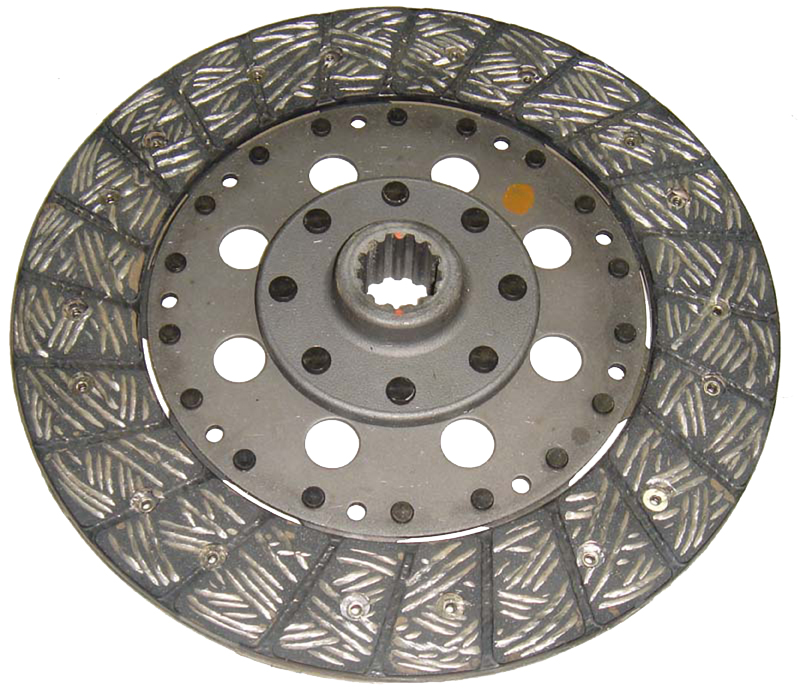

Disc
Part #: FD320051
Reference #: R13090
 Type - Rigid Woven
 OD - 9"
 Hub - 15/16"
 Spline - 13

 Models: L305, L345, L2850, L2950, L3250, L3450, L3650

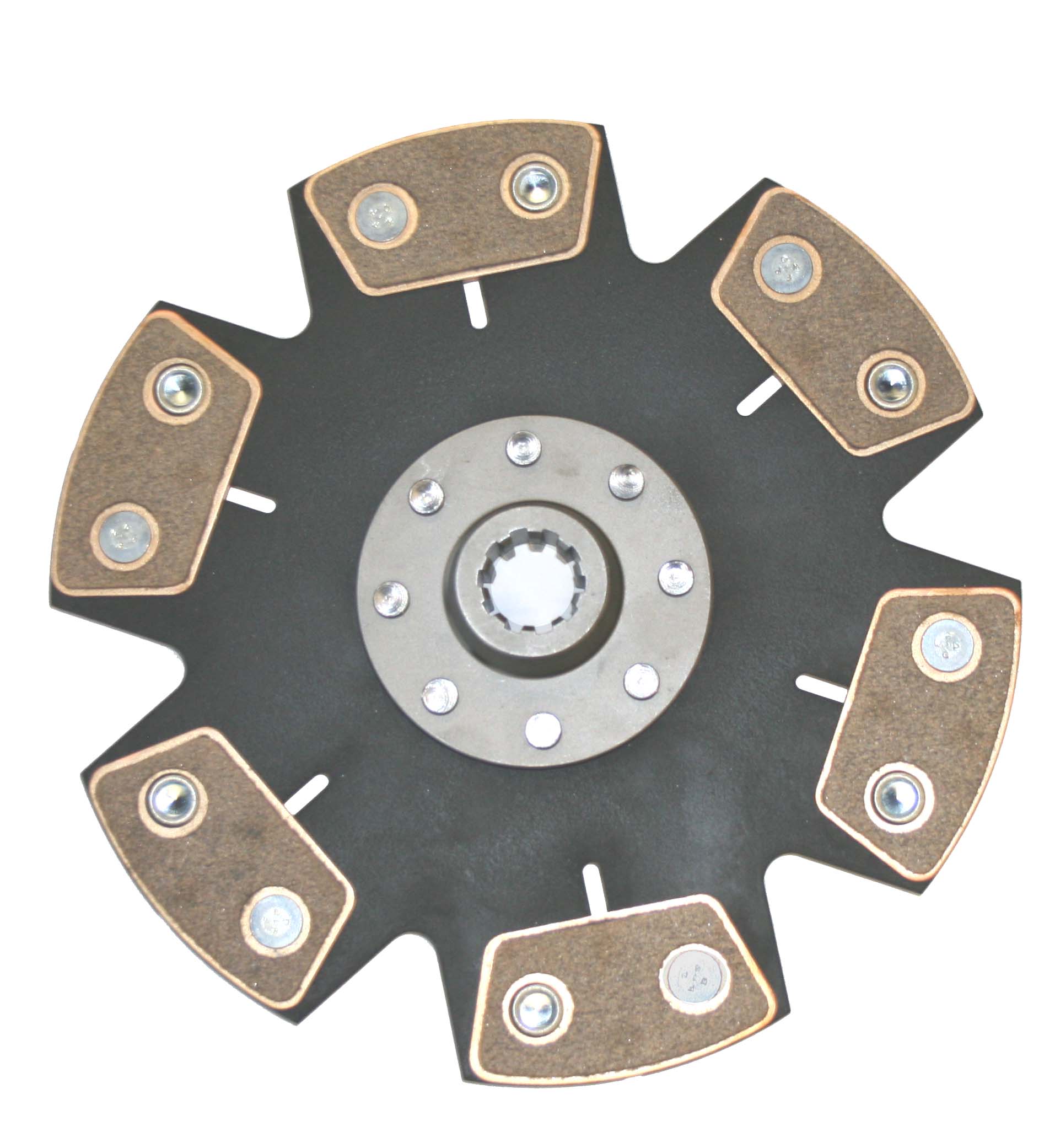

Disc
Part #: FD320051 HD6
 Type - Rigid Ceramic Button
 OD - 9"
 Hub - 15/16"
 Spline - 13

 Models: L305, L345, L2850, L2950, L3250, L3450, L3650
Release Bearing
Part #: RCT55B
Reference #: 835582
 ID - 2.166"
 OD - 3.468"
 Thickness - 0.866"

 Models: L39, L45, L48, L2900, L3010, L3130, L3240, L3300, L3410, L3430, L3540, L3560, L3600, L3710, L3830, L3940, L4200, L4202, L4240, L4300, L4310, L4400, L4600, L4610, L4630, L4701, L4740, L5030, L5040, L5240, L5740, M4700, M4800, M4900, M5400, M5640, M5700, M6040, M6800, M7040, M8200, M9000, MX4700, MX4800, MX5100, MX5200
Pilot Bearing
Part #: 6002-2RS
15005
836002
 ID - 0.590"
 OD - 1.250"
 Thickness - 0.350"

 Models: L30, L35, L39, L45, L48, L175, L185, L200, L225, L235, L245, L260, L275, L285, L295, L305, L345, L355, L1500, L1501, L2050, L2201, L2250, L2255, L2350, L2500, L2550, L2600F, L2650, L2800, L2850, L2900, L2950, L3000, L3010, L3130, L3240, L3250, L3300, L3350, L3400, L3410, L3430, L3450, L3540, L3560, L3600, L3650, L3710, L3830, L3940, L4150, L4150 DTN, L4200, L4202, L4240, L4300, L4310, L4350, L4400, L4600, L4610, L4630, L4701, L4740, L5030, L5040, L5240, L5740, MX4700, MX4800, MX5000, MX5100, MX5200
