The Standard in Friction Products and Service

"Quality Since 1958"

KUBOTA

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.

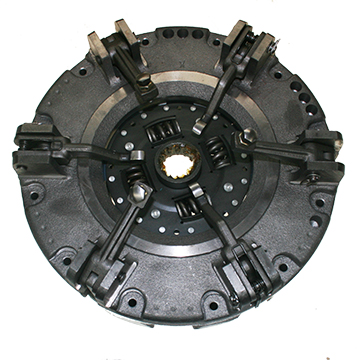

11-1/4 INCH DUAL STAGE
Pressure Plate Assembly
Part #: K35555
Reference #: K35788
 Type - Lever
 Plate Size - 11"
 Levers - 6
 Springs - Belleville
 Hub/Spline - 1-9/16" x 14
 Flywheel Step - .079"
 Stage -Dual
 Includes K35789 Ceramic Button Disc
 Interchangeable with K35555

 Models: L5450, M4000, M4030, M4050, M4500, M4950, M5030, M5500, M5850, M5950, M6030, M7030, M7500, M8030

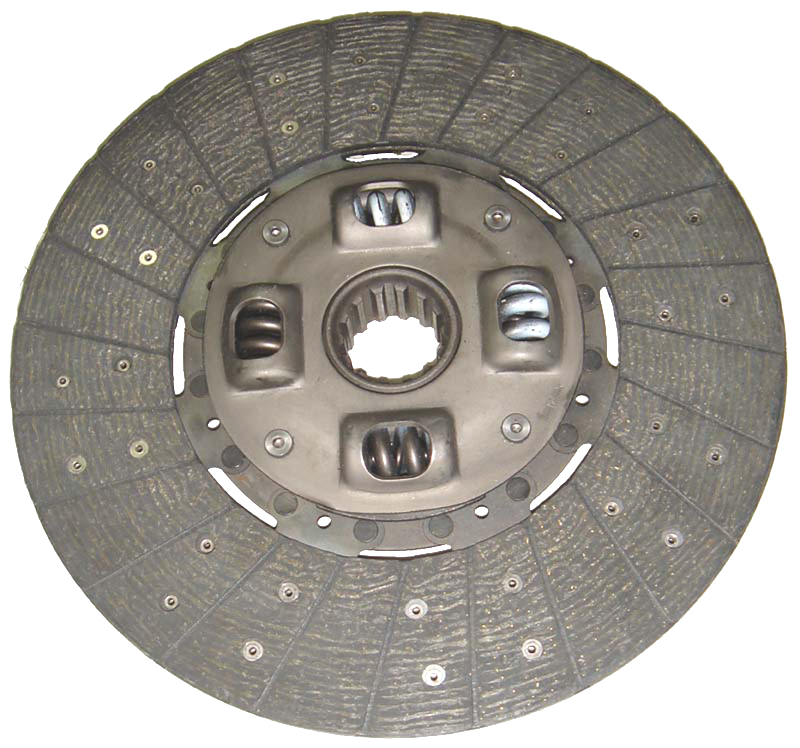

Disc
Part #: K35787
Reference #: 32521
Reference #: 35502-25132
 Type - Spring Woven
 OD - 11"
 Hub Size - 1-9/16"
 Spline - 14

 Models: L5450, M4000, M4030, M4050, M4500, M4950, M5030, M5500, M5850, M5950, M6030, M7030, M7500, M8030

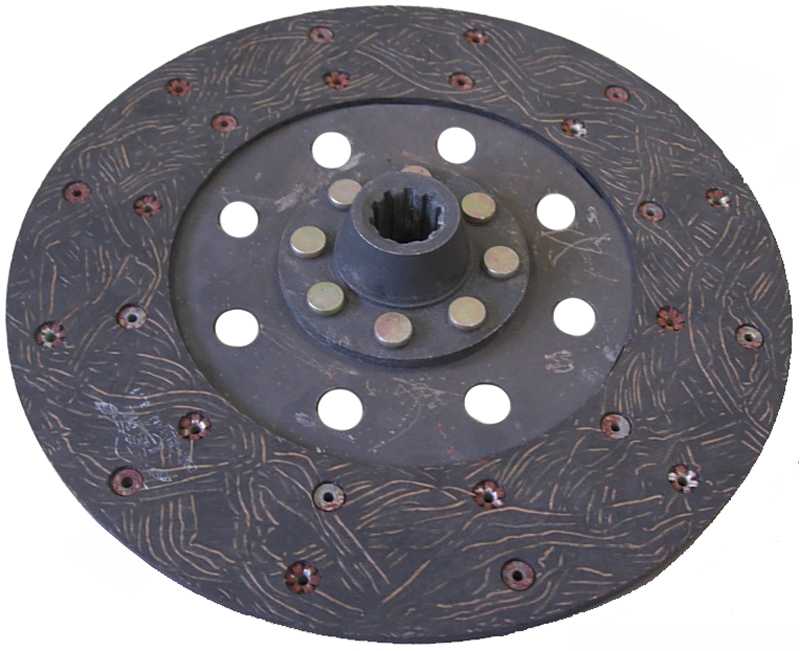

Disc
Part #: K32590
 Type - Rigid Woven
 OD - 11"
 Hub Size - 15/16"
 Spline - 10

 Models: L5450, M4000, M4030, M4050, M4500, M4950, M5030, M5500, M5850, M5950, M6030, M7030, M7500, M8030
Release Bearing
Part #: 500 0459 00
Reference #: 8301080
Reference #: 87345759
Reference #: 87541562
 ID - 1.968"
 OD - 3.550"
 Thickness - 0.845"

 RELEASE BEARING W/COLLAR
 Luk Style

Pilot Bearing
Part #: 6013-2RS
Reference #: 830166
 ID - 2.557"
 OD - 3.936"
 Thickness - 0.704"

Pilot Bearing
Part #: 6203-2RS
 ID - .6693"
 OD - 1.5748"
 Thickness - 1.5748"

 Models: L3750, L4850, L5450, M4000, M4030, M4050, M4500, M4950, M5030, M5850
