KUBOTA

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


9-1/2 INCH SINGLE STAGE

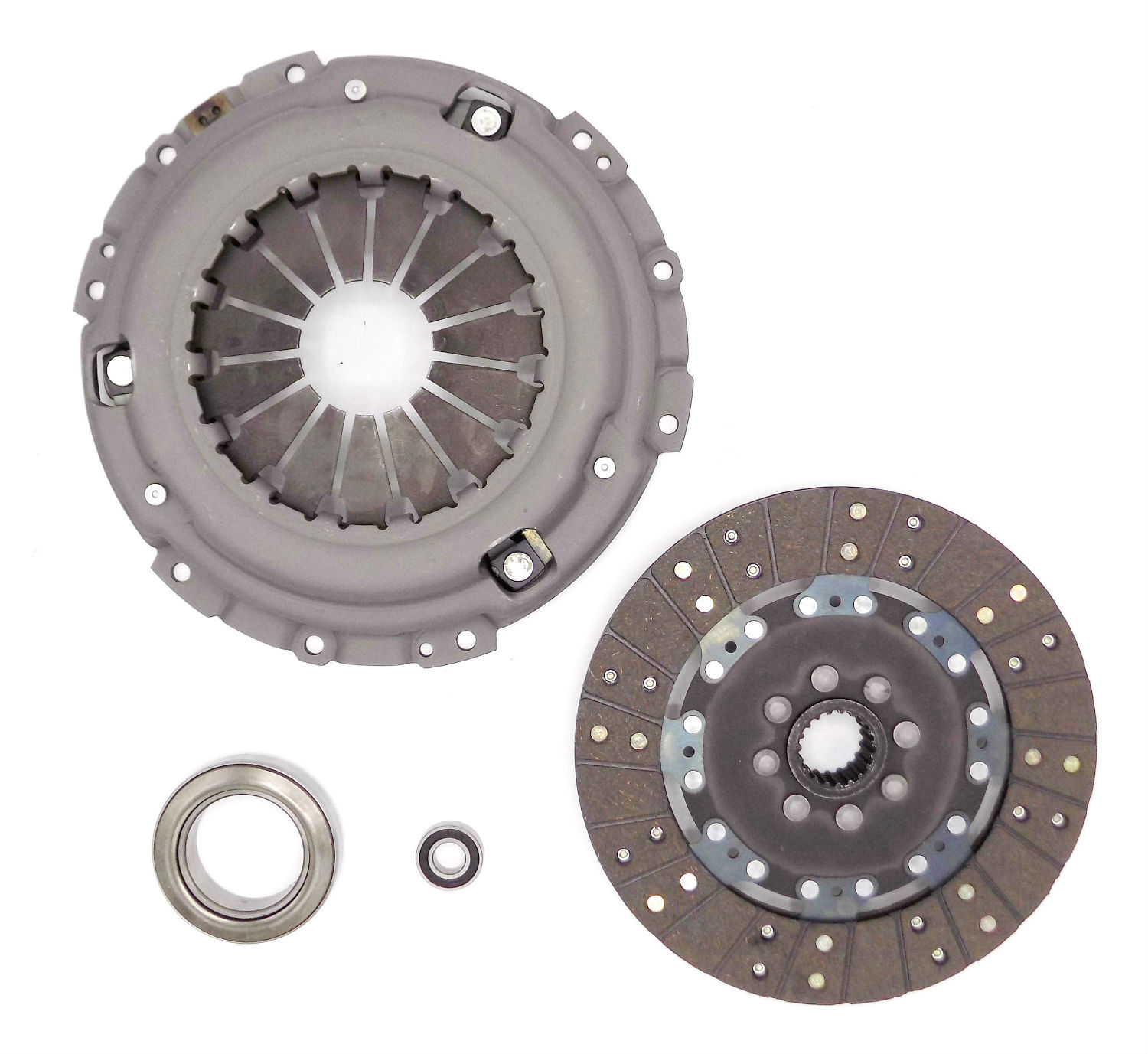

Clutch Kit
Part #: K20206N KIT
 Includes: 6002-2RS, FD320160, K20206, RCT55B

Pressure Plate Assembly
Part #: K20206
Reference #: K31301-14600
Reference #: KTA020-20600
 Type - Diaphragm
 Plate Size - 9-1/2"
 Levers - Diaphragm
 Springs - Diaphragm
 Flywheel Step - Flat
 Stage -Single

 Models: L45, L2900, L3010, L3130, L3240, L3300, L3410, L3430, L3540, L3560, L3830, L3940, L4240, L4300, L4400, L4600, L4630, L4701, L4740, M5030, MX4700, MX5200

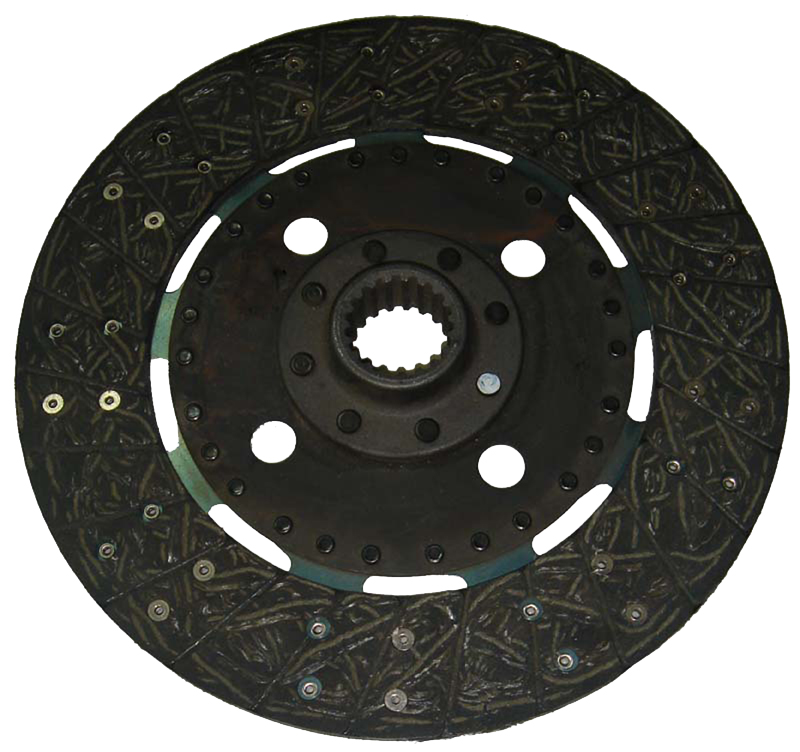

Disc
Part #: FD320160
Reference #: F400441
Reference #: R127829
 Type - Rigid Woven
 OD - 9-1/2"
 Hub - 1-3/8"
 Spline - 19"

 Models: L45, L2900, L3010, L3130, L3240, L3300, L3410, L3430, L3450, L3560, L3830, L3940, L4240, L4300, L4400, L4600, L4630, L4701, L4740, L5030, L5240, L5740, MX4700, MX5200

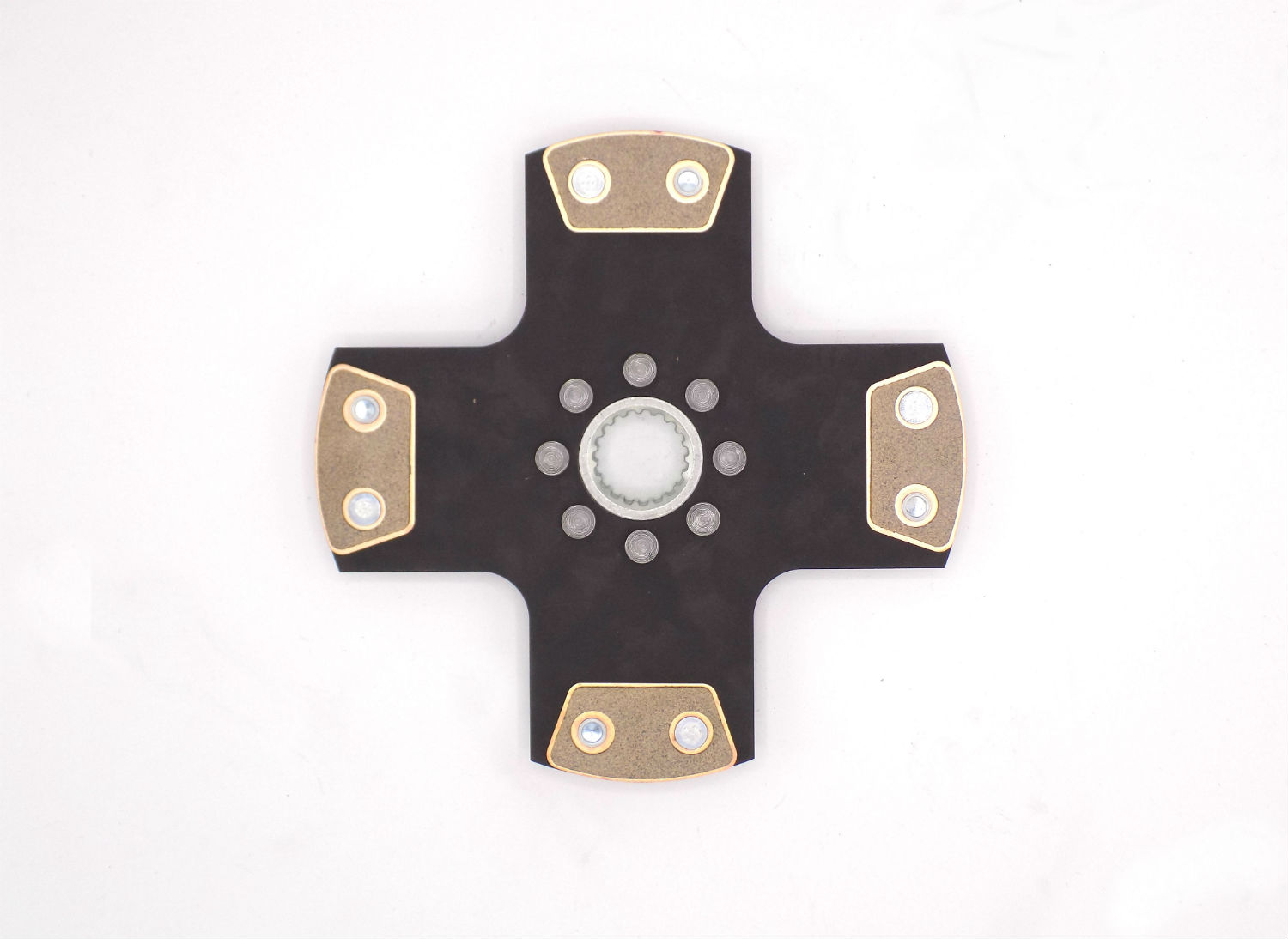

Disc
Part #: FD320160 HD4
 Type - Rigid Ceramic Button
 OD - 9-1/2"
 Hub Size - 1-3/8"
 Spline - 19

 Models: L45, L2900, L3010, L3130, L3240, L3300, L3410, L3430, L3540, L3560, L3830, L3940, L4240, L4300, L4400, L4600, L4630, L4701, L4740, L5030, L5240, L5740, MX4700, MX5200
Release Bearing
Part #: RCT55B
Reference #: 835582
 ID - 2.166"
 OD - 3.468"
 Thickness - 0.866"

 Models: L39, L45, L48, L2900, L3010, L3130, L3240, L3300, L3410, L3430, L3540, L3560, L3600, L3710, L3830, L3940, L4200, L4202, L4240, L4300, L4310, L4400, L4600, L4610, L4630, L4701, L4740, L5030, L5040, L5240, L5740, M4700, M4800, M4900, M5400, M5640, M5700, M6040, M6800, M7040, M8200, M9000, MX4700, MX4800, MX5000, MX5100, MX5200
Pilot Bearing
Part #: 6002-2RS
15005
836002
 ID - 0.590"
 OD - 1.250"
 Thickness - 0.350"

 Models: L30, L35, L39, L45, L48, L175, L185, L200, L225, L235, L245, L260, L275, L285, L295, L305, L345, L355, L1500, L1501, L2050, L2201, L2250, L2255, L2350, L2500, L2550, L2600F, L2650, L2800, L2850, L2900, L2950, L3000, L3010, L3130, L3240, L3250, L3300, L3350, L3400, L3410, L3430, L3450, L3540, L3560, L3600, L3650, L3710, L3830, L3940, L4150, L4150 DTN, L4200, L4202, L4240, L4300, L4310, L4350, L4400, L4600, L4610, L4630, L4701, L4740, L5030, L5040, L5240, L5740, MX4700, MX4800, MX5000, MX5100, MX5200
