Massey Ferguson

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. If you cannot find what you are looking for feel free to call.

11 INCH - DUAL STAGE #1
Clutch Kit
Part #: M526665N KIT
Reference #: 1212-1417
 Includes: 6203-2RS, AG 08, M516068, M526665, N1174

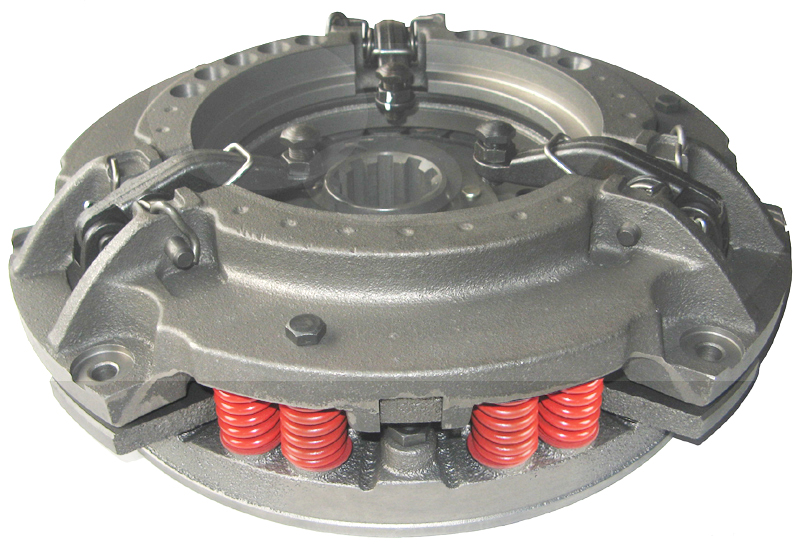

Clutch Kit
Part #: M526664N KIT
Reference #: 1212-1426
 Includes: 6203-2RS, AG 08, M516068, M526663, N1174

Clutch Kit
Part #: M526666N KIT
Reference #: 1212-1400Y
 Includes: 6203-2RS, AG 08, M516068, M526666, N1174

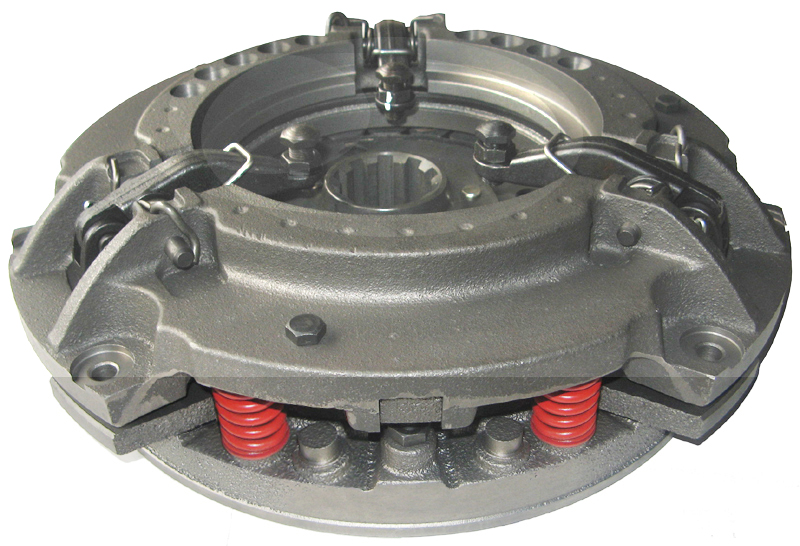

Pressure Plate Assembly
Part #: M526666
 Type - Lever
 Plate Size - 11"
 Levers - 3
 Springs - 12
 Hub/Spline - 1-3/4" x 10
 Flywheel Step - 1.720" w/air ring - 1.750" w/o air ring
 Stage -Dual

 Models: 30 IND, 165, 175, 180, 202, 203, 302, 304, 3165

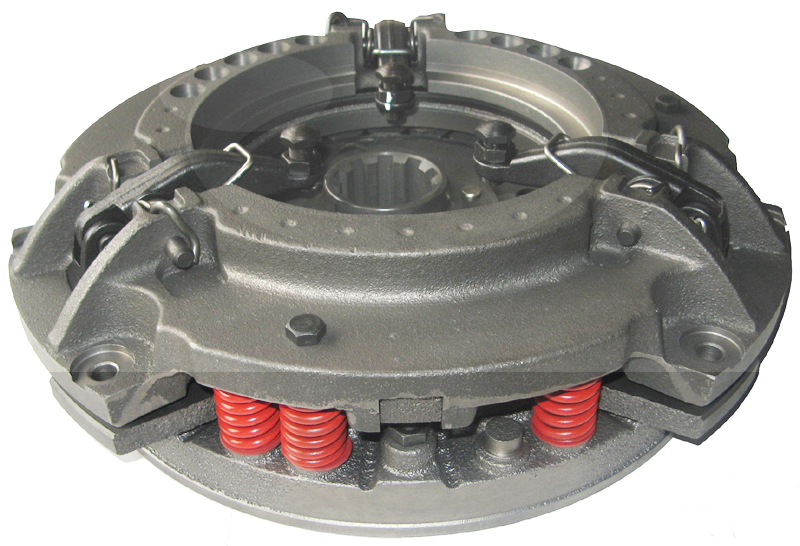

Pressure Plate Assembly
Part #: M526665
 Type - Lever
 Plate Size - 11"
 Levers - 3
 Springs - 9
 Hub/Spline - 1-3/4" x 10
 Flywheel Step - 1.720" w/air ring - 1.750" w/o air ring
 Stage -Dual

 Models: TO30, TO35, 20 IND, 40IND, 50, 65, 135, 135 UK, 150, 202, 203, 302, 304, 2135, 2200
Pressure Plate Assembly
Part #: M526663
 Type - Lever
 Plate Size - 11"
 Levers - 3
 Springs - 6
 Hub/Spline - 1-3/4" x 10
 Flywheel Step - 1.750"
 Stage -Dual
 Includes M3620411

 Models: 20 IND, 40IND, 50, 135, 135 UK, 150, 202, 203, 2135, 2200

Part #: RABC-95 KIT

 LEVER KIT FOR M526666, M526665 & M526663
 Kit Includes 3 Levers.


Part #: RABC-96 KIT
Reference #: 1810855M92

 11" REPAIR KIT W/HARDWARE

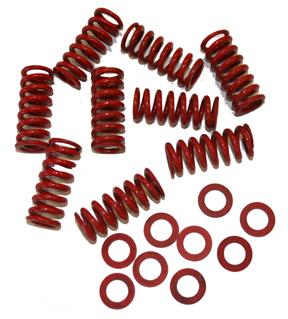

Part #: M886396M1

 RED SPRINGS FOR M526666, M526665, M526663


Part #: PT2775

 BELLEVILLE SPRING FOR M526666, 526665, 526663

Disc
Part #: M516068
 Type - Rigid Woven
 OD - 11"
 Hub Size - 1-1/8"
 Spline - 10

 Models: TO30, TO35, 20 IND, 30 IND, 40B, 40IND, 50, 65, 135, 135 UK, 150, 165, 175, 180, 202, 203, 230, 235, 245, 255, 265, 285, 302, 304, 2135, 2200, 3165

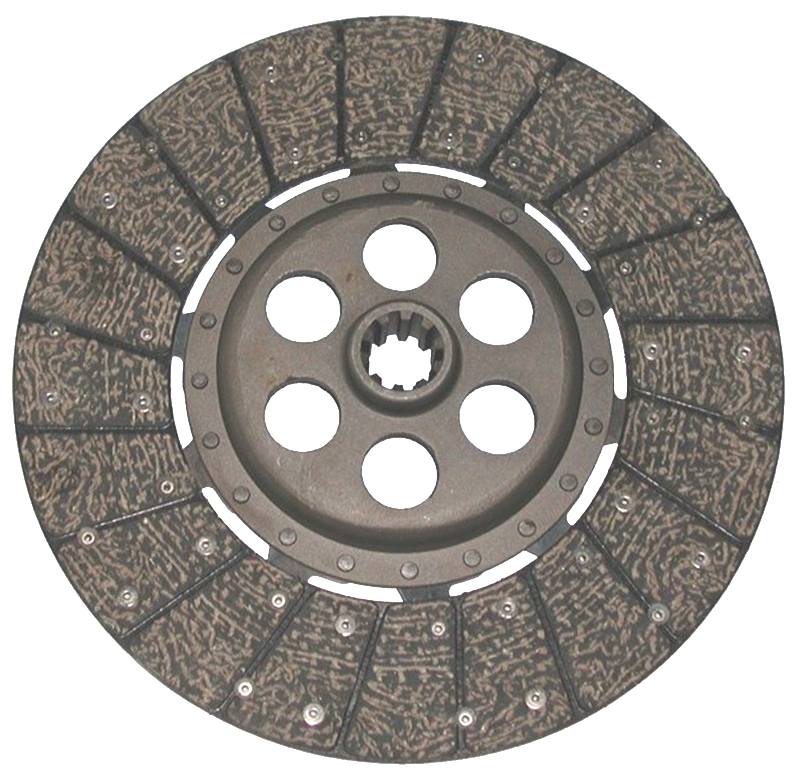

Disc
Part #: M516068 HD6
Reference #: 100354-CB
 Type - Rigid Ceramic Button
 OD - 11"
 Hub Size - 1-1/8"
 Spline - 10

 Models: TO30, TO35, 20 IND, 30 IND, 40B, 40IND, 50, 65, 135, 135 UK, 150, 165, 175, 180, 202, 203, 230, 235, 245, 255, 265, 285, 302, 304, 2135, 2200, 3165

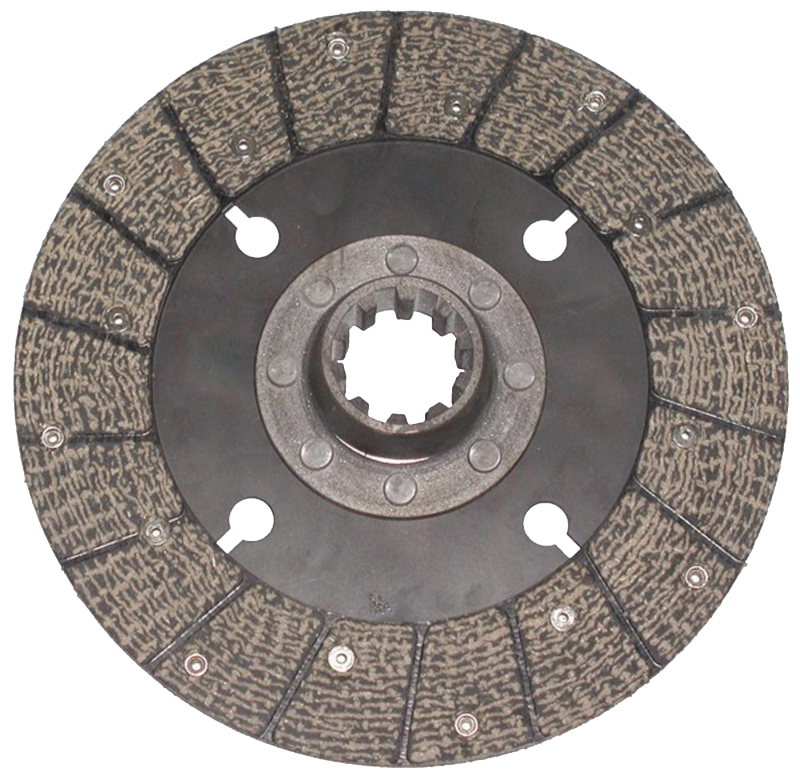

Disc
Part #: M3620411
Reference #: 392492
 Type - Rigid Woven
 OD - 9"
 Hub Size - 1-3/4"
 Spline - 10

 Models: F40, TO30, TO35, 20 IND, 30 IND, 40IND, 50, 65, 105, 135, 135 UK, 150, 165, 175, 180, 202, 203, 204, 302, 304, 2135, 2200, 3165
Release Bearing
Part #: N1174
Reference #: 2505-T
Reference #: 832505
Reference #: A2287-31
 ID - 2.500"
 OD - 4.154"
 Thickness - .865"

 Models: F40, TO30, TO35, 20 IND, 30 IND, 40IND, 50, 50 IND, 50B IND, 50F IND, 50H IND, 50HX IND, 60H IND, 65, 105, 135, 135 UK, 150, 158, 165, 175, 178, 180, 202, 203, 204, 230, 231, 231S, 235, 240, 243, 245, 250, 251XE, 253, 255, 261, 263, 265, 265S, 270, 271, 271X, 271XE, 275, 281, 281X, 282, 283, 285, 285S, 290, 298, 302, 304, 320, 350, 355, 360, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399, 431, 451, 461, 471, 481, 491, 492, 533, 543, 573, 583, 593, 596, 670, 690, 698, 699, 760, 860, 865, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2135, 2200, 2605, 2606H, 2615, 2625, 2660, 2670, 2680, 4215, 4220, 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 5335, 5340, 5355, 5360, 5365
Pilot Bearing
Part #: 6203-2RS
 ID - .6693"
 OD - 1.5748"
 Thickness - 1.5748"

 Models: F40, Super 90, TE20 , TEA20, TO20, TO30, TO35, 20 IND, 30 IND, 40IND, 50, 50 IND, 50B IND, 50F IND, 50H IND, 50HX IND, 60H IND, 65, 85, 88, 105, 135, 135 UK, 150, 158, 165, 175, 178, 180, 202, 203, 204, 205, 210, 230, 231, 231S, 235, 240, 243, 245, 250, 251XE, 253, 255, 261, 263, 265, 265S, 270, 271, 271X, 271XE, 275, 281, 281X, 282, 283, 285, 285S, 290, 298, 302, 304, 320, 350, 355, 360, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399, 431, 451, 461, 471, 481, 491, 492, 533, 543, 573, 583, 593, 596, 670, 690, 698, 699, 1010, 1080, 1085, 1125, 1140, 1145, 1160, 1165, 1180, 1190, 1240, 1250, 1260, 1445, 1445H, 1455, 4215, 4220, 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4260, 4263, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 4500, 4655, 5335, 5340, 5355, 5360, 5365, 6500
Alignment Tool
Part #: AG 08
 Large Spline - 1 3/4" - 10T
 Small Spline - 1 1/8" - 10T
 Pilot Diameter - 0.670

 Models: TE20 , TEA20, TO20, TO30, TO35, 20 IND, 30 IND, 40IND, 50, 65, 135, 135 UK, 150, 165, 175, 180, 202, 203, 231S, 240, 302, 304, 2135, 2200, 3165
