John Deere

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. If you cannot find what you are looking for feel free to call.

11 INCH - CLUTCH COLLARSHIFT, TSS, SYNCHRONIZED REVERESE TRANS - EARLY
Clutch Kit
Part #: R66695N KIT
 Includes: 6009-2RS, 6013-2RS, 6203-2RS, AG 21, R66695

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715

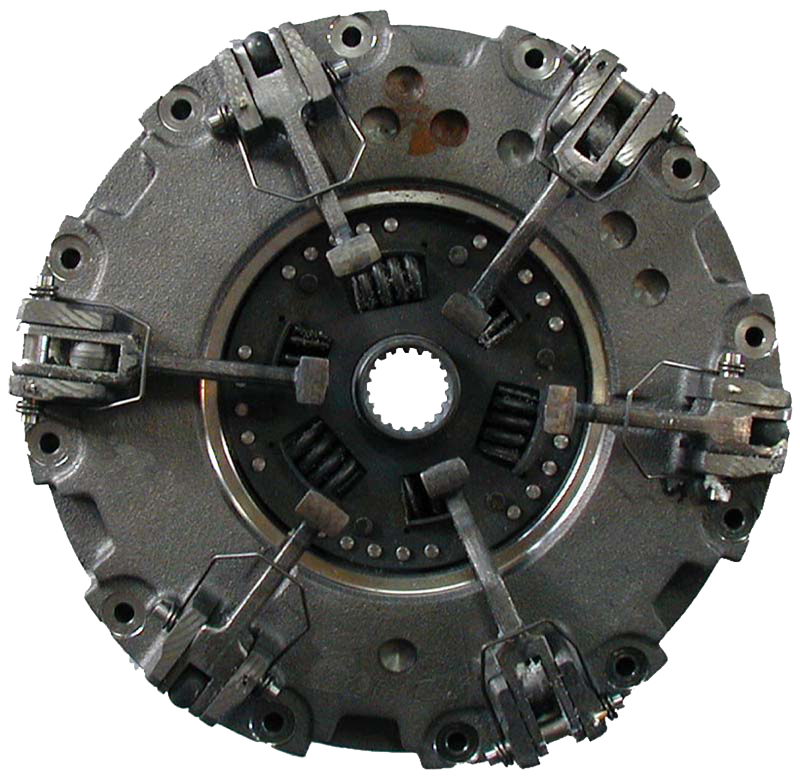

Pressure Plate Assembly
Part #: R66695
 Plate Size - 11"
 Levers - 6
 Springs - Belleville
 Hub/Spline - 1-3/8" - 19
 Stage -Dual

 Includes Engine Disc (R64042) & PTO Disc (R45662)

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715

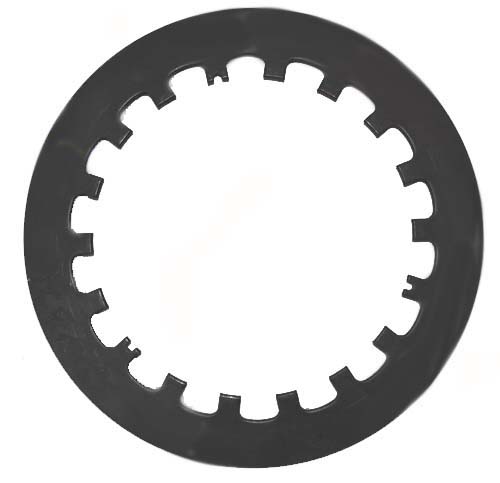

Part #: R109441

 Belleville Spring

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715

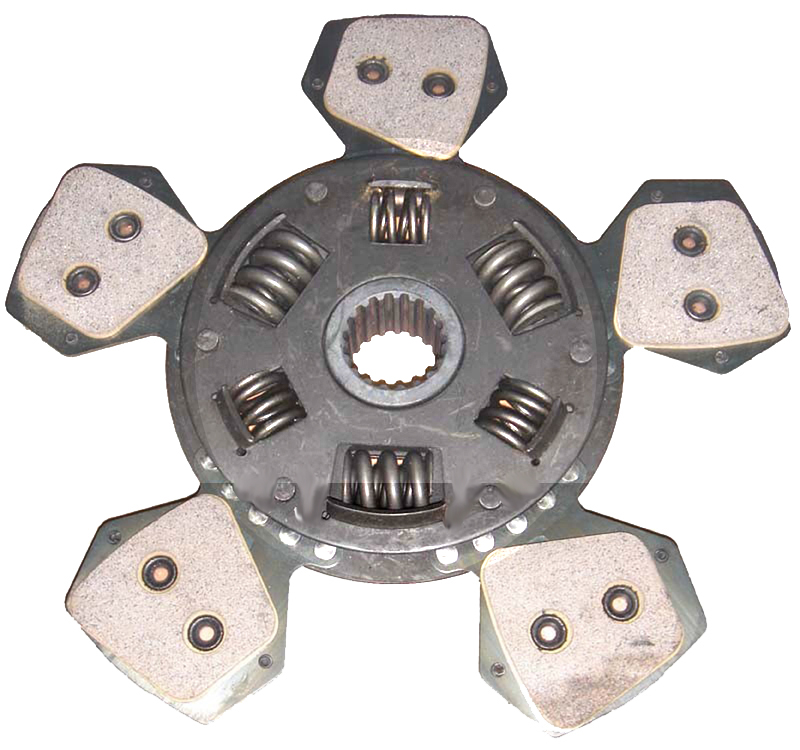

Disc
Part #: R64042
Reference #: RE64042
 Type - Spring Ceramic Button
 OD - 11"
 Hub Size - 1-3/8"
 Spline - 19

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715

Part #: R64042-UL
Reference #: RE-64042-UL

 11" X 1-3/8" - 19T
 Sprung Unlined Disc - Fin Thickness: .088
 Button Required: VT Series

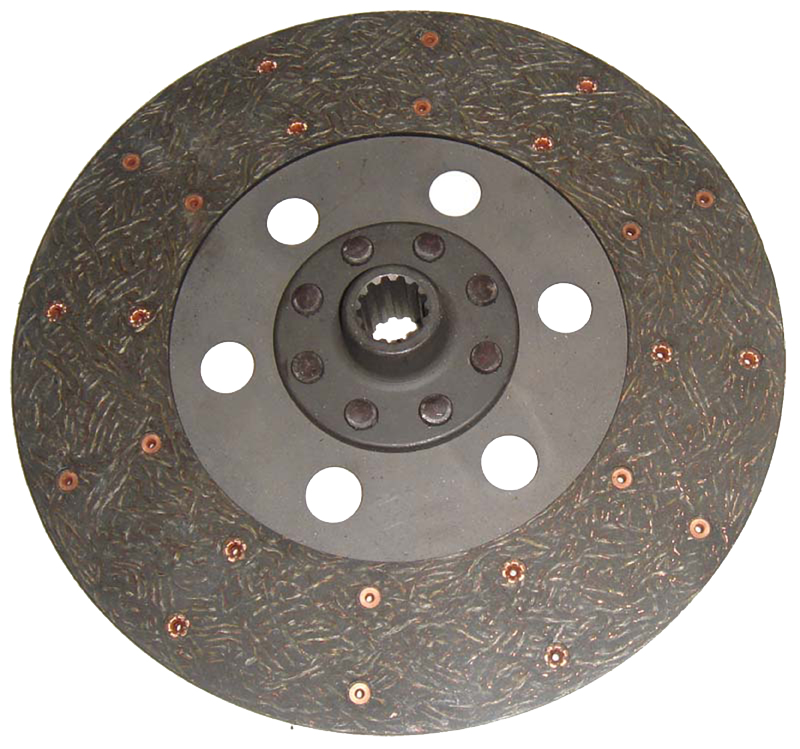

Disc
Part #: R45662
 Type - Rigid Woven
 OD - 11"
 Hub Size - 1"
 Spline - 13

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715
Pilot Bearing
Part #: 6009-2RS
Reference #: 832009
 ID - 1.769"
 OD - 2.950"
 Thickness - 0.629"

 Transmission Bearing

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715
Pilot Bearing
Part #: 6013-2RS
Reference #: 830166
 ID - 2.557"
 OD - 3.936"
 Thickness - 0.704"
 PTO Bearing

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715
Pilot Bearing
Part #: 6203-2RS
 ID - .6693"
 OD - 1.5748"
 Thickness - 1.5748"

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715
Alignment Tool
Part #: AG 21
 Large Spline - 1 3/8" - 19T
 Small Spline - 15/16" - 13T
 Pilot Diameter - 0.669

 Models: 5200, 5210, 5300, 5310, 5310N, 5400, 5410, 5415, 5500, 5510, 5510N, 5600, 5615, 5700, 5715
