John Deere
We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.
9 INCH - DUAL STAGE | |||||
---|---|---|---|---|---|
Clutch Kit Part #: R18376N KIT  Includes: 6203-2RS, AG 21, FD320051, N039, R18376 | |||||

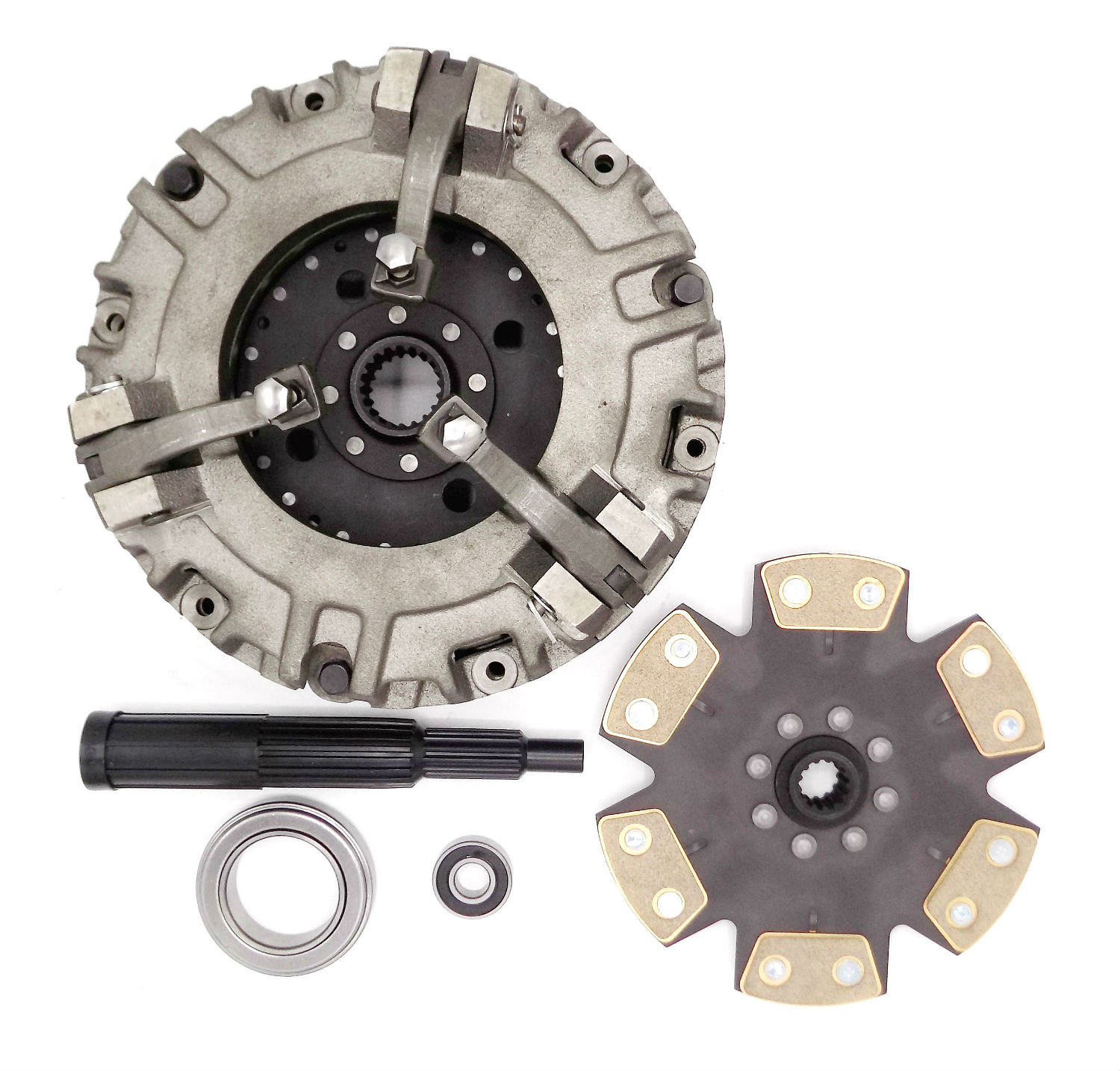

Clutch Kit Part #: R18376-CB-N KIT  Includes: 6203-2RS, AG 21, FD320051 HD6, N039, R18376-R | |||||

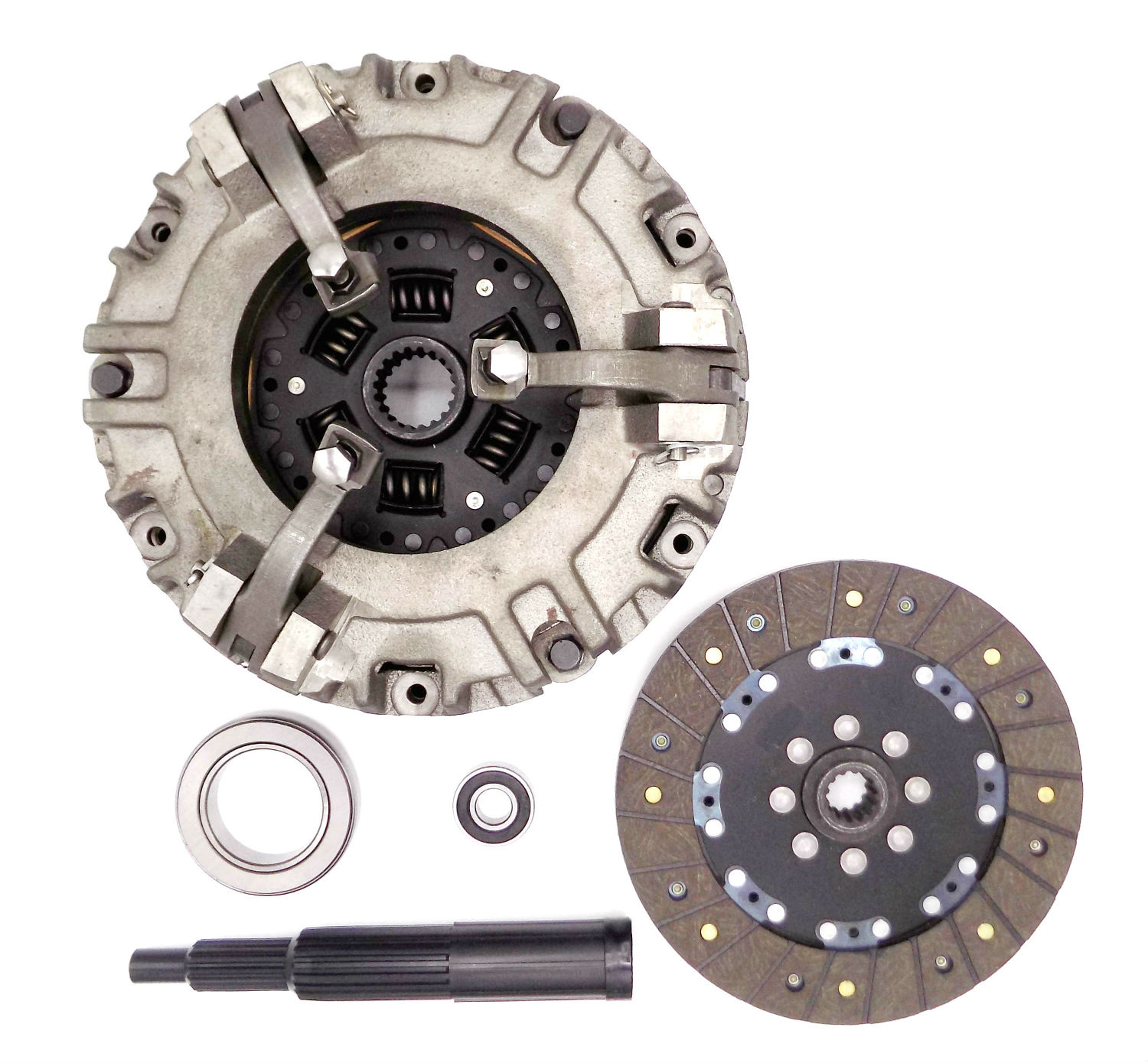

Clutch Kit Part #: R18377N KIT  Includes: 6203-2RS, AG 21, FD320051, N039, R18377 | |||||
Pressure Plate Assembly Part #: R18376-R  Type - Dual Stage  Plate Size - 9"  Levers - 3  Springs - 2 - Belleville  Hub/Spline - 1-3/8" - 19  Flywheel Step - .020"  PPA w/Dowel Holes  Includes Rigid Woven Disc  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Pressure Plate Assembly Part #: R18376  Type - Dual Stage  Plate Size - 9"  Levers - 3  Springs - 2 - Belleville  Hub/Spline - 1-3/8" - 19  Flywheel Step - .020"  PPA W/Dowel Holes  Includes Spring Woven Disc  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Pressure Plate Assembly Part #: R18377  Type - Dual Stage  Plate Size - 9"  Levers - 3  Springs - 2 - belleville  Hub/Spline - 1-3/8" - 19  Flywheel Step - .020'  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||

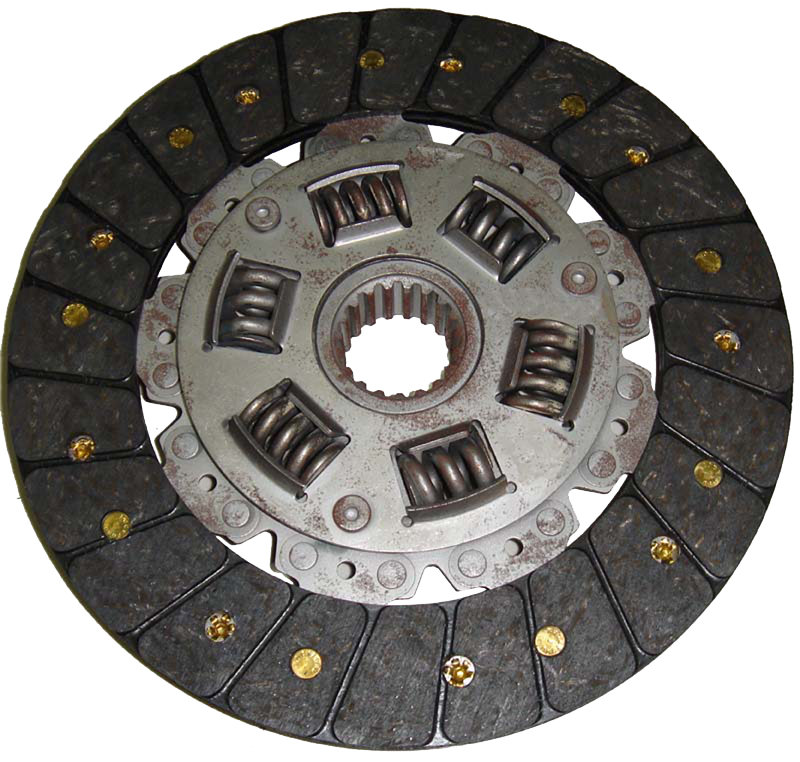

Disc Part #: R18382  Type - Spring Woven  OD - 9"  Hub - 1-3/8"  Spline - 19  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Part #: R18382HD4  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||

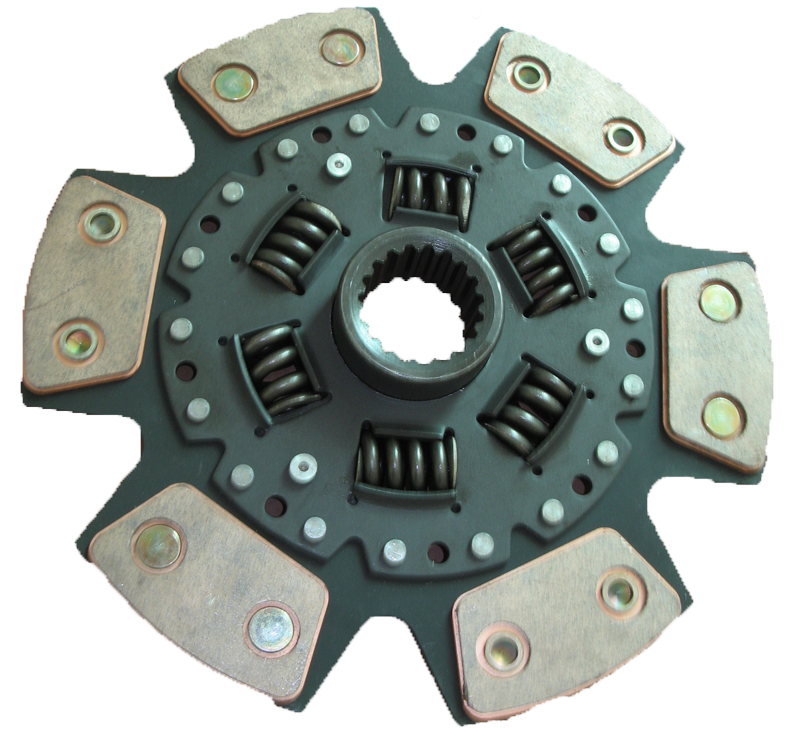

Disc Part #: R18382 HD6  Type - Spring Ceramic Btn  OD - 9"  Hub - 1-3/8"  Hub Size - 19  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Disc Part #: R18382 HD6-UL  Type - Spring Unlined Btn (VTS)  OD - 9"  Hub - 1-3/8"  Spline - 19 | |||||
Disc Part #: FD320051 Reference #: R13090  Type - Rigid Woven  OD - 9"  Hub - 15/16"  Spline - 13  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Disc Part #: FD320051 HD6  Type - Rigid Ceramic Button  OD - 9"  Hub - 15/16"  Spline - 13  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Disc Part #: M3703735-HD-4  Type - Rigid Ceramic Button  OD - 9"  Hub Size - 15/16"  Spline - 13  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Disc Part #: M3703735 HD6  Type - Rigid Ceramic Button  OD - 9"  Hub Size - 15/16"  Spline - 13  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Release Bearing Part #: N039 Reference #: 835511  ID - 2.164"  OD - 3.450"  Thickness - 0.765"  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 | |||||
Pilot Bearing Part #: 6202-2RS  ID - 0.590"  OD - 1.375"  Thickness - .430"  Models: 850, 870, 900HC, 950, 970, 990, 1050, 1070, 4005 |
