John Deere

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


10 INCH - W/REVERSER TRANS

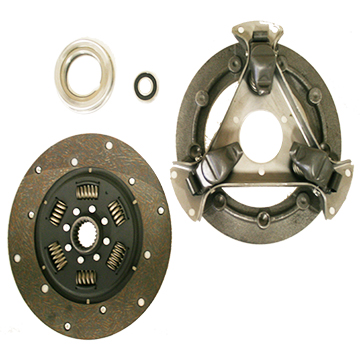

Clutch Kit
Part #: R60368N KIT
 Includes: 6203-2RS, N1171, R33891, R60368

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640

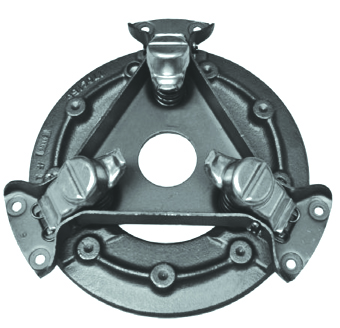

Pressure Plate Assembly
Part #: R60368
Reference #: AT22064
 Plate Size - 10
 Levers - 3
 Springs - 3
 Flywheel Step - 1.480"
 Stage -Single

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640

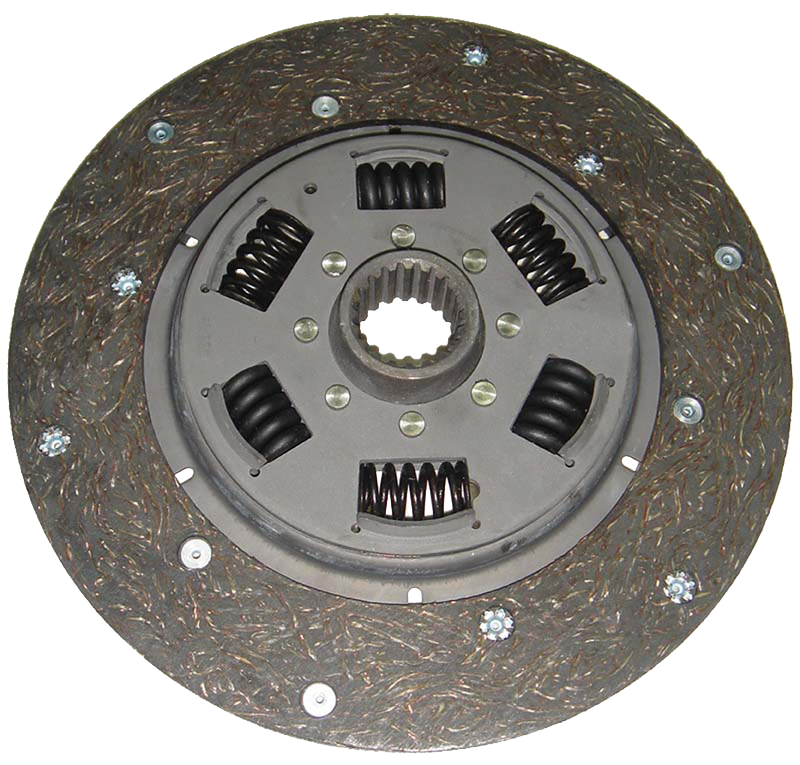

Disc
Part #: R33891
 Type - Spring Woven
 OD - 10"
 Hub Size - 1-5/16"
 Spline - 20

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640

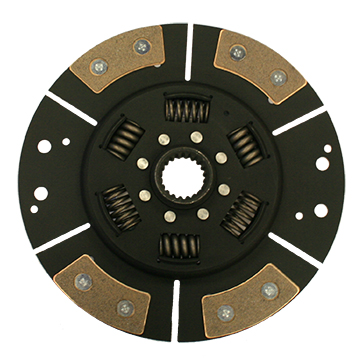

Disc
Part #: R33891-HD4
 Type - Spring Ceramic Button
 OD - 10"
 Hub Size - 1-5/16"
 Spline - 20

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640

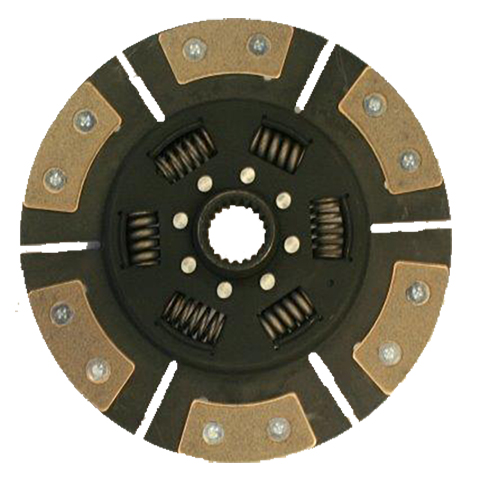

Disc
Part #: R33891 HD6
 Type - Spring Ceramic Button
 OD - 10"
 Hub Size - 1-5/16"
 Spline - 20

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640
Release Bearing
Part #: N1171
Reference #: 2255-18
Reference #: 8225518
Reference #: AT17464
 ID - 2.250"
 OD - 3.750
 Thickness - 0.750"

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640
Pilot Bearing
Part #: 6002-2RS
15005
836002
 ID - 0.590"
 OD - 1.250"
 Thickness - 0.350"

 Models: 300, 300B, 301, 302, 302A, 310, 310A, 310B, 380, 400A, 400B, 400C, 401, 401B, 410, 480A, 480B, 480C, 604DE, 1020, 1520, 2020, 2255, 2350, 2355, 2355N, 2440, 2550, 2555, 2630, 2640
