International

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


14 INCH SINGLE STAGE

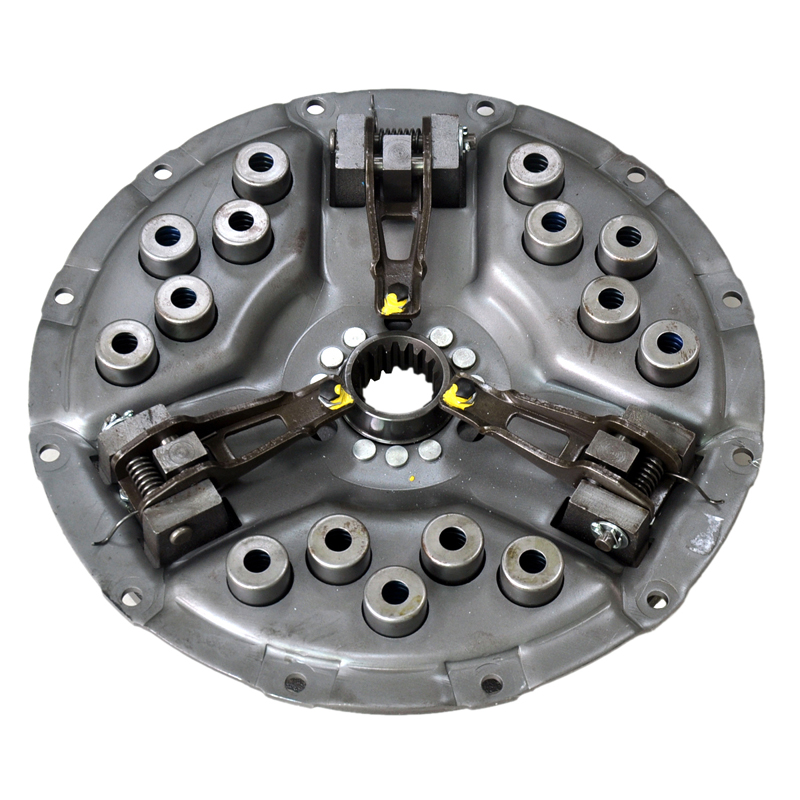

Pressure Plate Assembly
Part #: 67597
 Plate Size - 14"
 Levers - 3
 Springs - 15
 Hub/Spline - 1-3/4" - 17
 Flywheel Step - 1.938"
 Stage -Single

 FOR TRACTORS WITH HYDRAULIC CLUTCH ASSIST.

 Models: 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 4100, 4156, 4166, 4186, 21206, 21256, 21456
Disc
Part #: 67600-HD6
 Type - Spring Ceramic Button
 OD - 14"
 Hub Size - 1-3/16"
 Spline - 11

 Models: 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 3388, 3588, 4100, 4156, 4166, 4186, 6388, 6588, 21206, 21256, 21456
Release Bearing
Part #: N1174
Reference #: 2505-T
Reference #: 832505
Reference #: A2287-31
 ID - 2.500"
 OD - 4.154"
 Thickness - .865"

 Models: Super W6, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 4100, 4156, 4166, 4186, 6388, 6788, 21206, 21256, 21456
Pilot Bearing
Part #: 6304-2RS
 ID - .787"
 OD - 2.047"
 Thickness - .590"

 Models: 1 3/16"-11 Spline-Puller, 300, 350, 460, 544, 606, 656, 664, 666, 686, 706, 756, 766, 786, 806, 815, 826, 856, 915, 966, 986, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1586, 2500, 2544, 2606, 2656, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3514, 3588, 3616, 3688, 3788, 4100, 4156, 4166, 4186, 6388, 6588, 6788, 21206, 21256, 21456
Alignment Tool
Part #: AG 17
 Large Spline - 1 3/4" - 17T
 Small Spline - 1 3/16" - 11T
 Pilot Diameter - 0.787

 Models: 1 3/16"-11 Spline-Puller, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3688, 4100, 4156, 4166, 4186, 21206, 21256, 21456
