Brake Shoes

16 1/2" Drum Diameter

Arvin Meritor

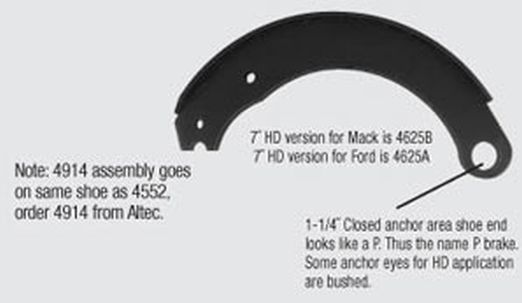

P Style
Shoe Width = 4" FMSI No. = 4549P
Shoe Width = 5" FMSI No. = 4524P
Shoe Width = 6" FMSI No. = 4514P
Shoe Width = 7" FMSI No. = 4515P
Shoe Width = 8 5/8" FMSI No. = 4551P
Shoe Width = 10" FMSI No. = 4552P
Shoe Width = 10" FMSI No. = 4514/49P
Hardware Kit No. = TK1HD

---

Arvin Meritor

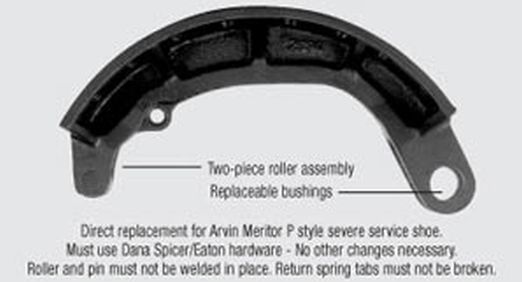

Cast P Style For Severe Applications
Shoe Width = 7" FMSI No. = 4515CS
Hardware Kit No. = RK1

---

Arvin Meritor

Severe Duty + Design-Primarily Used On Transit Bus Applications
Shoe Width = 6" FMSI No. = 4715CS
Shoe Width = 8-5/8" FMSI No. = 4728CS
Hardware Kit No. =

---

Arvin Meritor

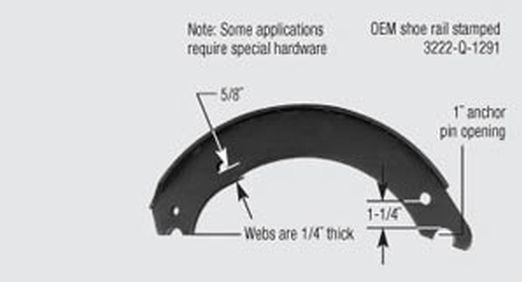

Q Style Brake
Shoe Width = 4" FMSI No. = 4549Q
Shoe Width = 5" FMSI No. = 4524Q
Shoe Width = 6" FMSI No. = 4514Q
Shoe Width = 7" FMSI No. = 4515Q
Shoe Width = 8" FMSI No. = 4644Q
Shoe Width = 8 5/8" FMSI No. = 4551Q
Shoe Width = 10" FMSI No. = 4552Q
Shoe Width = 10" FMSI No. = 4514/49Q
Hardware Kit No. = QK1HD

---

Arvin Meritor

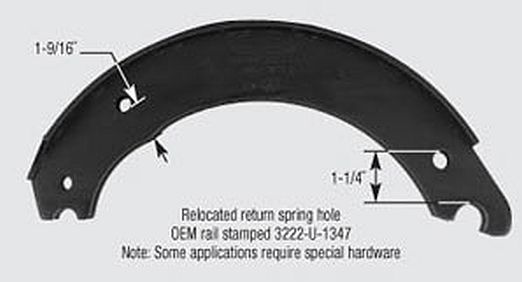

Q Style Special Application OBSOLETE
Shoe Width = 5" FMSI No. = 4524
Hardware Kit No. =

---

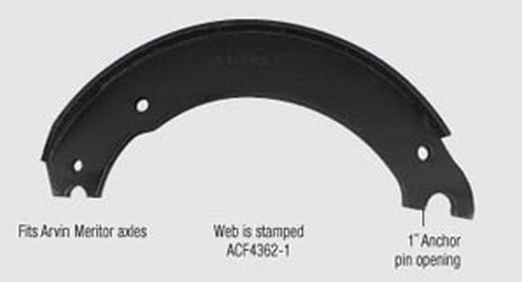

Arvin Meritor

Special Application Q Style-Used Primarily On Mack Truck
Shoe Width = 5" FMSI No. = 4524QH
Shoe Width = 6" FMSI No. = 4514QH
Hardware Kit No. = MF2

---

Arvin Meritor

Special Application Q Style-Used Primarily On Mack
Shoe Width = 7" FMSI No. = 4515H
Hardware Kit No. = MK2HD

---

Arvin Meritor

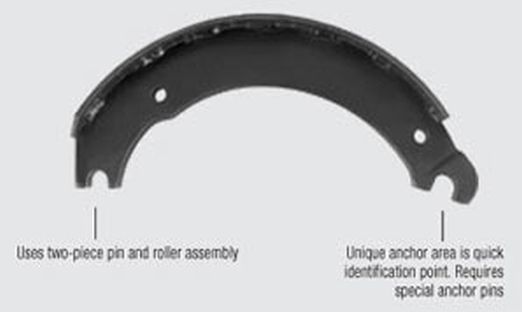

EB Series
Shoe Width = 7" FMSI No. = 4515F5
Hardware Kit No. = QK1HD

---

Arvin Meritor

Q+ Style
Shoe Width = 5" FMSI No. = 4720Q
Shoe Width = 6" FMSI No. = 4715Q
Shoe Width = 7" FMSI No. = 4707Q
Shoe Width = 8" FMSI No. = 4718Q
Shoe Width = 8 5/8" FMSI No. = 4711Q
Hardware Kit No. = QK1HD or MF2

---

Arvin Meritor

Special Application Q+ Heavy Duty
Shoe Width = 7" FMSI No. = 4707H
Hardware Kit No. = MK2HD

---

Bendix

Truck and Tractor-Primarily Used On Ford Cargo Series
Shoe Width = 7" FMSI No. = 4515B
Hardware Kit No. = FR1

---

Dana Spicer/Eaton

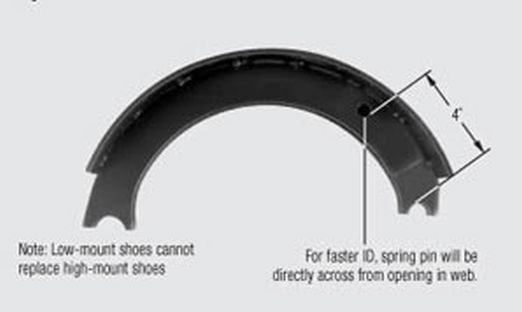

TEB Series Low Mount-Single Anchor Pin Design
Shoe Width = 5" FMSI No. = 4223E
Shoe Width = 6" FMSI No. = 4317E
Shoe Width = 7" FMSI No. = 4311E
Shoe Width = 8 5/8" FMSI No. = 4674E
Hardware Kit No. = EK1HD

---

Dana Spicer/Eaton

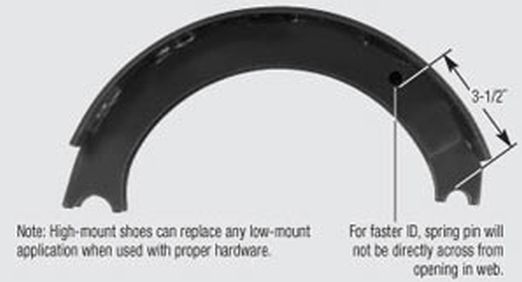

EB Series High Mount-Single Anchor Pin Design
Shoe Width = 5" FMSI No. = 4223EH
Shoe Width = 6" FMSI No. = 4317EH
Shoe Width = 7" FMSI No. = 4311EH
Hardware Kit No. = EK3

---

Dana Spicer/Eaton

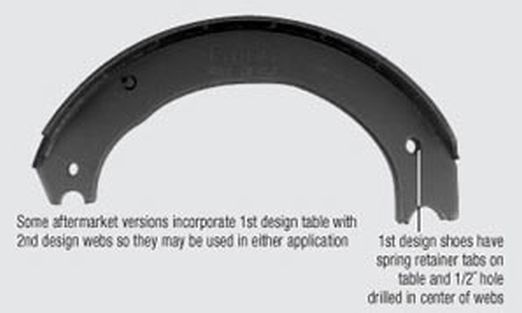

ES Series-1st Design-Single Anchor Pin
Shoe Width = 5" FMSI No. = 4719E
Shoe Width = 6" FMSI No. = 4725E
Shoe Width = 7" FMSI No. = 4709E
Shoe Width = 8 5/8" FMSI No. = 4726E
Hardware Kit No. = ES1

---

Dana Spicer/Eaton

ES Series-Current Design-Single Anchor Pin
Shoe Width = 5" FMSI No. = 4719E2
Shoe Width = 6" FMSI No. = 4725E2
Shoe Width = 7" FMSI No. = 4709E2
Shoe Width = 8 5/8" FMSI No. = 4726E2
Hardware Kit No. = ES2

---

Dana Spicer/Eaton

ES Series � Heavy Duty Version
Shoe Width = 7" FMSI No. = 4708P
Hardware Kit No. = E9052

---

Dana Spicer/Eaton

ES-Severe Duty
Shoe Width = 7" FMSI No. = 4708CS
Hardware Kit No. = E9048

---

Dana Spicer/Eaton

ES Series
Shoe Width = 7" FMSI No. = 4708Q
Hardware Kit No. = EQ1

---

Dana Spicer/Eaton

ES Series-Fruehauf XEM Replacement
Shoe Width = 7" FMSI No. = 4708X
Hardware Kit No. = EX1

---

Dana Spicer

FC Style-Mainly Used In Trailer Applications
Shoe Width = 5" FMSI No. = 4524Q
Shoe Width = 6" FMSI No. = 4514Q
Shoe Width = 7" FMSI No. = 4515Q
Shoe Width = 8 5/8" FMSI No. = 4551Q
Hardware Kit No. = QK1HD

---

Dana Spicer

Xtra-Life Series-Only Used On Trailer Applications
Shoe Width = 7" FMSI No. = 4701
Hardware Kit No. =

---

Dana Spicer

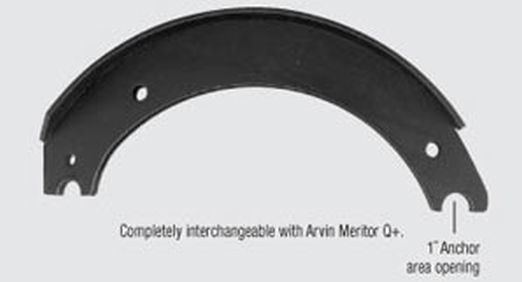

Xtra-Life II
Shoe Width = 7" FMSI No. = 4707Q
Hardware Kit No. = QK1HD

---

Dana Spicer - Kershaw

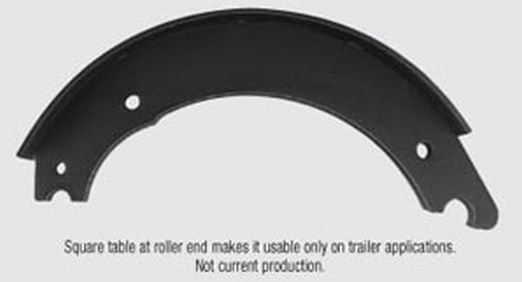

Trailer Axle Application Only OBSOLETE
Shoe Width = 7" FMSI No. = 4515
Hardware Kit No. =

---

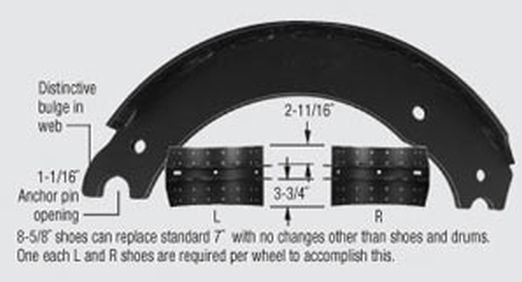

Fruehauf P Style

Shoe Width = 7" FMSI No. = 4515FP
Shoe Width = 8 5/8" FMSI No. = 4551FPL
Shoe Width = 8 5/8" FMSI No. = 4551FPR
Hardware Kit No. = TK4

---

Fruehauf XEM

2nd Design
Shoe Width = 7" FMSI No. = 4515X2
Shoe Width = 8 5/8" FMSI No. = 4551X2L
Shoe Width = 8 5/8" FMSI No. = 4551X2R
Hardware Kit No. =

---

Fruehauf XEM

3rd Design
Shoe Width = 7" FMSI No. = 4515X
Shoe Width = 8 5/8" FMSI No. = 4551XL
Shoe Width = 8 5/8" FMSI No. = 4551XR
Hardware Kit No. = XK3HD

---

Holland Axle

XEM+-No Longer Manufactured As OE
Shoe Width = 7" FMSI No. = 4707X
Hardware Kit No. = XK3MPHD

---

Fruehauf Propar

Specialty Shoe For Arvin Meritor Axles
Shoe Width = 7" FMSI No. = 4515FQ
Hardware Kit No. = QK1HD
