Ford New Holland

We carry a full line of tractor clutches for a wide range of makes and models. Check back often as we are constantly updating our tractor information. Search for clutch by size in the left hand navigation. If you cannot find what you are looking for feel free to call for assistance.


11 DUAL STAGE 1
Pressure Plate Assembly
Part #: F5181421
 Type - Lever Style
 Plate Size - 11"
 Levers - 6
 Springs - Belleville
 Hub/Spline - 1-9/16" x 14
 Flywheel Step - .020
 Stage -Dual

 Models: T4020, T4030, T4040
Disc

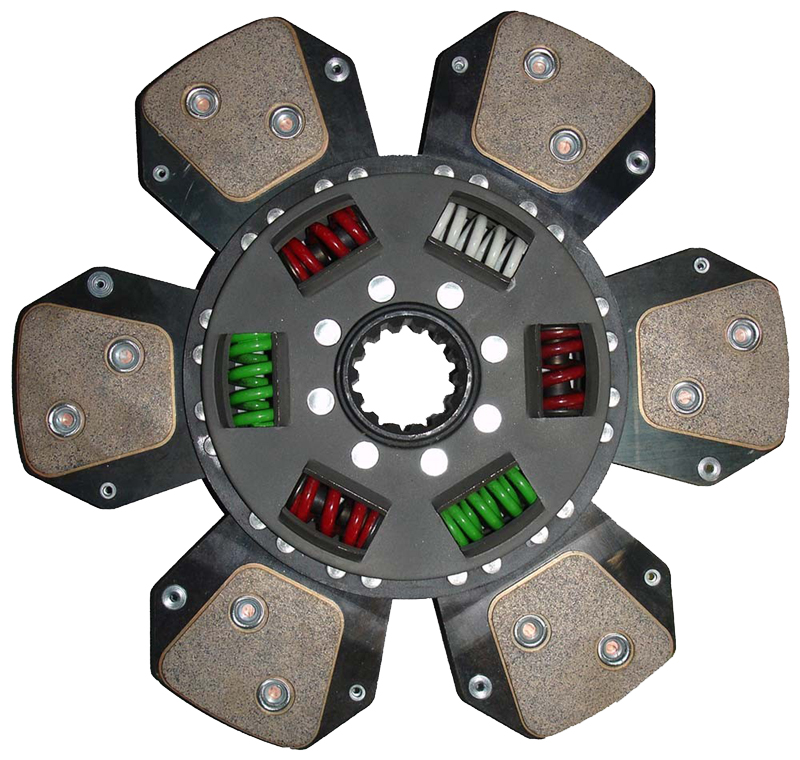

Part #: F5181422
Reference #: 328 0261 10
 Type - Spring Ceramic Button
 OD - 11"
 Hub Size - 1-9/16"
 Spline - 14

 Models: T4020, T4030, T4040
Disc
Part #: F5181422-UL
 Type - Spring Unlined Ceramic Button
 OD - 11"
 Hub Size - 1-9/16"
 Spline - 14

 Models: T4020, T4030, T4040
Disc

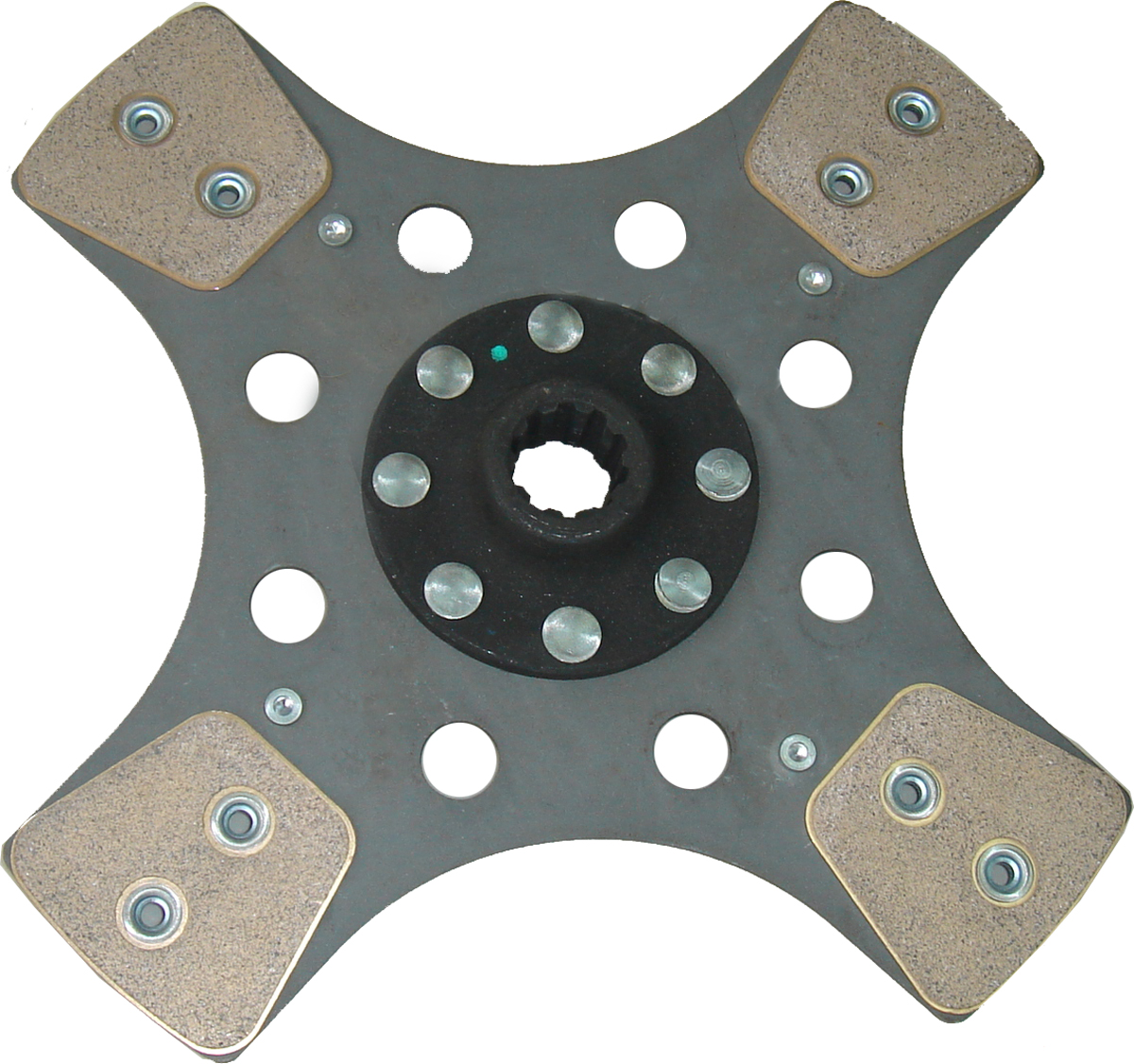

Part #: F5176450
Reference #: 328 0332 10
 Type - Rigid Ceramic Button
 OD - 11"
 Hub Size - 15/16"
 Spline - 10

 Models: T4020, T4030, T4040
Disc
Part #: F5176450-UL
 Type - Rigid Unlined Ceramic Button
 OD - 11"
 Hub Size - 15/16"
 Spline - 10

 Models: T4020, T4030, T4040
Pilot Bearing
Part #: 6011-2RS
Reference #: 832165
 ID - 1.968"
 OD - 3.147"
 Thickness - .620"

 Models: T4020, T4030, T4040
Release Bearing
Part #: 500 0459 00
Reference #: 8301080
Reference #: 87345759
Reference #: 87541562
 ID - 1.968"
 OD - 3.550"
 Thickness - 0.845"

 Models: T4020, T4030, T4040
Pilot Bearing
Part #: 6303-2RS
Reference #: 410 0025 00
 ID - .669"
 OD - 1.850"
 Thickness - .550"

 Models: T4020, T4030, T4040
Alignment Tool
Part #: AG 29
 Large Spline - 1 9/16" - 14T
 Small Spline - 1" - 10T
 Pilot Diameter - 0.667

 Models: T4020, T4030, T4040
